CK45 완충 장치 ISO9001 BKS는 이음새가 없는 스틸 튜브를 연마했습니다

제품 설명

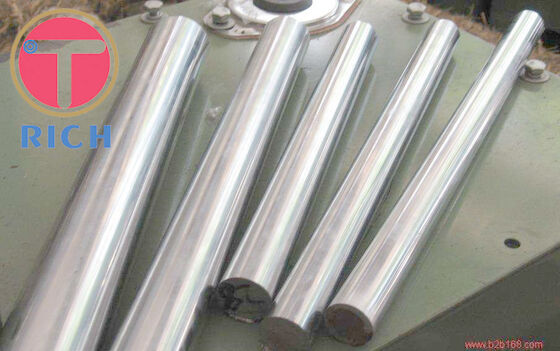

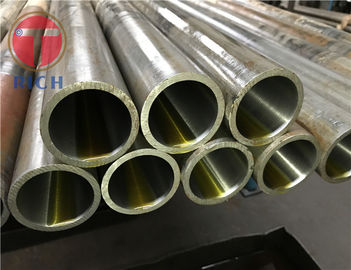

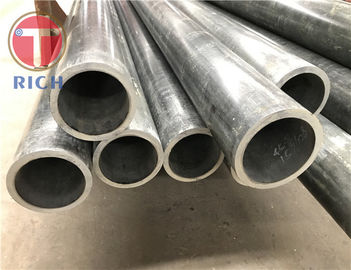

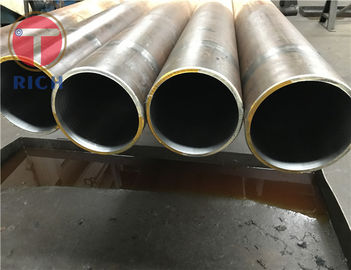

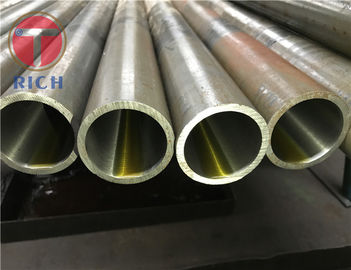

TORICH Seamless Pipe CK45 Shock Absorber ISO9001 BKS Honed Steel Tube

ST52 E355 BKS Shock Absorber Using CK45 AISI1020 AISI1045 CDS Honed Tube

Manufacture Method:

Cold drawn, hot rolled+deep hole bored

Certification:

ISO9001, SGS,

Standard&Grade:

DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc.

ID Tolerance:

ISO H8

End finish:

Plain ends with square cuts,free of burrs

Bore Roughness:

Ra0.30um max for honed tubes, Ra0.25um Max for Skived&roller burnished tubes


End finish:
Plain ends with square cuts,free of burrs

Usage:
Hydraulic cylinder, Pneumatic Cylinder

Product Feature:

1.High precision (can cut the costs of machining) .
2.Excellent surface finish
3.Good mechanical performance (Aneal ,Bright Anealing,QT heatment on steel tubes to reach customers' Mechanical requsts. )

1.+C /BK

No heat treatment after final cold drawing process.

2.+LC/BKW

After the final heat treatment there's a suitable drawing pass.

3.+SA/BKS

After the final cold drawing process there's a stress relief heat treatment in controlled atmosphere.

4.+A/GBK

After the cold drawing process the tubes are annealed in a controlled atmosphere.

5.+N/NBK

After the final cold drawing operation the tubes are normalized in a controlled atmosphere
