교련 강관

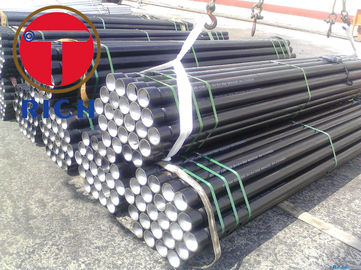

Product Name: GB/T 9808 Alloy Steel Grade Oil Drill Mineral Mining Seamless Steel Tubes Size range: O.D.:6-420mm W.T.:0.5-50mm L:4000-12500mm according to customers' actual application and production. Application : For Geological Drill underground for Oil and Mineral, for Mining Exploration,for Wire Line Drill Rod, Casing Tube, Core Barrel Tubes, Couplings Steel Grade: ZT380,ZT490,ZT520,ZT540,ZT590,ZT640,ZT740 Material: 37SiMn 38CrMoAl 30CrMnSi(A) Heat treatment: Normalized,

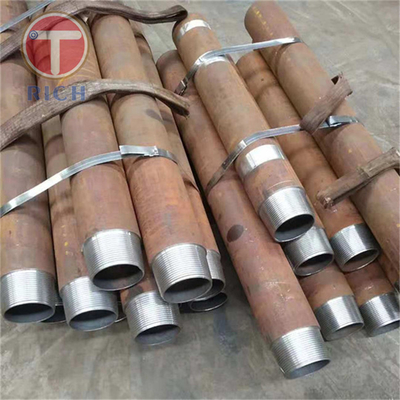

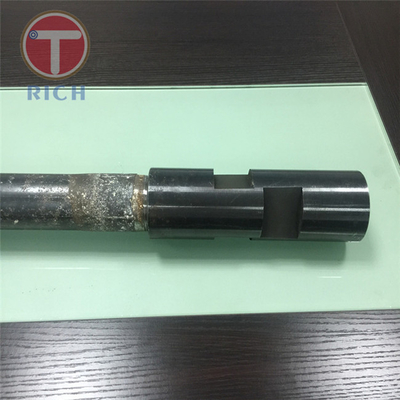

HQ NQ BQ Dill Steel Pipe Heavy Weight Thread Types Coupling Manufacturers Range 3 Length Water Well Steel Grade/Steel Material/Steel Number: STM-C-540 STM-C-640 STM-R-590 STM-R-690 STM-R-780 STM-R-830 Size Range: OD: 5-420mm WT: 0.5-50mm MECHANICAL PROPERTIES min Steel grade Tensile strength Mpa Yeild point or proof stress Mpa Elongation % STM-C-540 540 - 18 STM-C-640 640 - 16 STM-R-590 590 375 18 STM-R-690 690 440 16 STM-R-780 780 520 15 STM-R-830 830 590 10 Outside Diameter

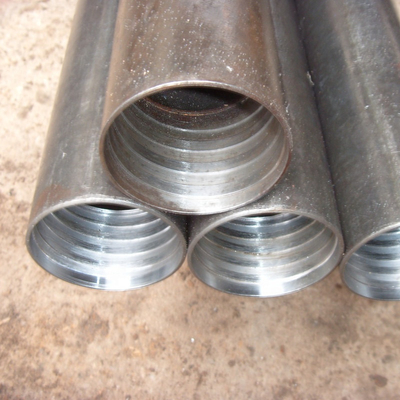

Products Description TORICH Cold Drawn Seamless Steel Tube 45MnMoB For Wire - Line Drill Rods Key Word 45MnMoB Seamless Drill Tubes Material 45MnMoB, 10#, 20#, 45#, 4130, 4140, 16Mn etc Size OD: 5-420mm; WT: 0.5-50mm; Length: 3450mm, 3500mm, max12000mm Technique Cold Drawn Seamless Application For wire-line drill rods,core barel tubes,drill rods coupling casing Chemical composition of 45MnMoB C: 0.41-0.49, Si: 0.17-0.37, Mn: 0.9-1.2, S: 0.04max, P: 0.04max, Mo: 0.2-0.3, B: 0

Description ASTM A276 316L stainless steel rod / ASTM A479 316L stainless steel bar Standard ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5,DIN 17440,GB/T 1220 Material 304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201, 202,410,420,430,etc Type Round,square,hexagonal,flat,angle Surface Pickled,Black,Bright,Polishing,Blasting,etc Specifications Round bar Diameter: 3mm~800mm Angle bar Size: 3mm*20mm*20mm~12mm*100mm*100mm Square bar Size: 4mm*4mm~100mm

TORICH GB/T9808 ZT380,ZT490,ZT520 Seamless Steel Tubes for Drilling TORICH GB/T9808 ZT380,ZT490,ZT520 Seamless Steel Tubes for Drilling Standard: GB/T9808, GB/T222, GB/T223, GB/T228, GB/T2102, GB/T2975, GB/T4336, GB/T5777, GB/T7735, GB/T12606, GB/T17395, GB/T20066, GB/T20123 Size range: OD: 33-350mm WT: 4.5-30mm Length: 12.5m Material: ZT380, ZT490, ZT520, ZT540, ZT590, ZT640, ZT740 Usage: Drilling Pipe Mechanical Property: Item Grade Tensile Strength Mpa Specify non

TORICH API 5CT N80 L80 Oil Casing Carbon Steel Tube Drill Tube Grade: H40, J55,K55, N80, L80, C90,T95, P110, Q125, V150 Function: Steel pipes used to support oil and gas well walls. Application: Petroleum casing is a large-diameter pipe that serves to fix oil and natural gas well walls or boreholes. The casing is inserted into the borehole and fixed with cement to help the borehole separate the rock formations and prevent the borehole from collapsing, while ensuring the

JIS G3465 Seamless steel pipes for drilling Type: Seamless carbon steel pipes Application: For Drill rod, Casing tube, Core tube Technique: Cold-finished, hot-finished Product Description Mechanical proporties: MECHANICAL PROPERTIES min Steel grade Tensile strength Mpa Yeild point or proof stress Mpa Elongation % STM-C-540 540 - 18 STM-C-640 640 - 16 STM-R-590 590 375 18 STM-R-690 690 440 16 STM-R-780 780 520 15 STM-R-830 830 590 10 Product Show: FAQ Q: Are you trading

Mining tubes with Alloy steel grade Straightness, Concentricity, Mechanical Properties can meet the requirement of DCDMA (USA), BS4019 (UK), METRIC (SWEDEN) Size range: O.D.:6-95mm W.T.:1-10mm L:max12000mm Standard Producton Method Tube Size Tolerance GB/T 9808-2008 Hot rolled OD (+1.0%D) +0.65 (-0.5%D) -0.35 WT ≤10 (+15%S) +0.45 (-10%S) -0.35 ＞10 (+12.5%S, -10%S) Cold drawn OD 　 ±0.50%D or ±0.20 WT 　 ±8%S or ±0.15 Q(N)/ XJY118-2010 Cold drawn OD OD ±0.40%D or ±0.20 WT WT ±7

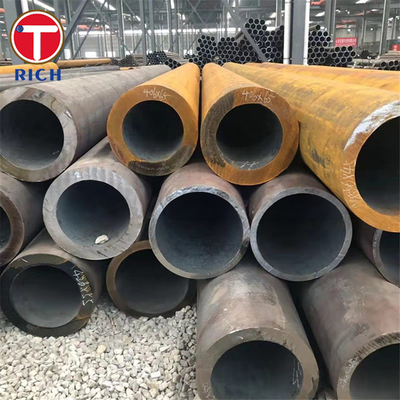

GOST 8733-74 15X5M 110 20 35 45 Cold Formed Steel Tube Cold Rolled Carbon Steel Seamless Pipe For Petroleum And Petrochemical Introduction GOST 8733-74 15X5M 110 20 35 45 is a cold formed steel tube made from cold rolled carbon steel. This seamless pipe is specifically designed for use in the petroleum and petrochemical industries. In this article, we will explore the material, specification, key features, chemical composition, mechanical properties, steel grade, application,
