SA178a는 ASTM A178 전기 저항 용접법 열 교환기 튜브를 단련했습니다
담당자 : Richard SHEN
전화 번호 : +86-13736164628
WhatsApp : +8613736164628
상세 정보 |
|||
형태 1: | 탄미익 | 형태 2: | 피트 표면 |
---|---|---|---|
형태 3: | 나선형 시트 | 형태 4: | 반점 |
물자 1: | 구리 합금 | 물자 2: | 탄소강 |
물자 3: | 스테인레스 강 | 재료 4: | 티타늄 |
하이 라이트: | 나선형 물결모양 티타늄 튜브,콘덴서 티타늄 튜브,티타늄 복수관 |
제품 설명

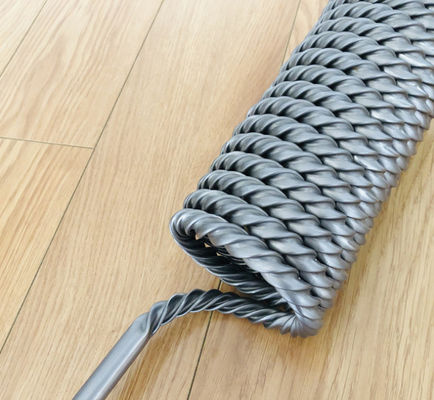

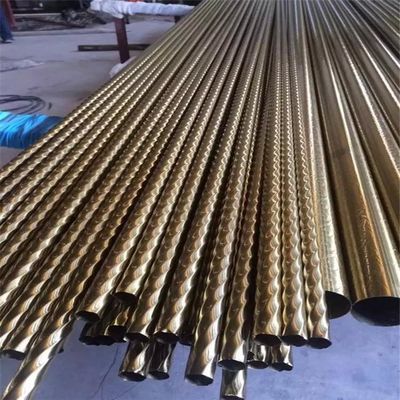

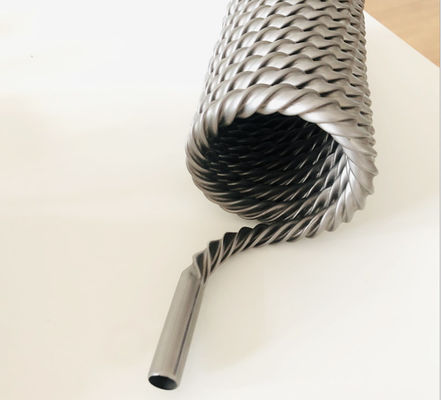

High Efficiency Spiral Corrugate Titanium Tube Spiral Twist Coil Tube
Material grade:
1. Titanium and titanium alloy tubes :
(TA1, TA2, TA3, ta8, ta8-1, ta9, ta9-1, TA10, gr.1, gr.2, gr.7, gr.12, gr.16, etc.)
2. Austenitic stainless steel pipe:
SUS304, SUS316L, 321, 904L, etc
3. Ferritic stainless steel pipe:
409,409L,439L,SUS445J2
4. Duplex stainless steel pipe:
2205,2507
Product Application :
1. Thin wall titanium welded pipes for heat exchangers, condensers and evaporators,
2. Industrial fluid titanium welded pipes, corrosion-resistant pipes
3. Support pipes for various industrial equipment and pressure vessels, are used in electric power, chemical industry, seawater utilization and marine engineering, aerospace, metallurgy, medicine, food and other industries.
Shape:
Twist, Spiral, Coil
Specification range:
Φ( 8.0-25.4)mm Χ Τ ( 0.5-2.0)mm
Characteristics:
* The heat transfer area between the fluid and the wall is increased, and the total heat transfer of the tube is increased
* Enhancing the fluid turbulence * It improves the contact efficiency between fluid and wall
* Destroy the development of fluid thermal boundary layer and enhance the heat transfer capacity of the tube
* The resistance of vapor molecules diffusing to the surface of the liquid film is reduced
* Improving the hydrophilicity * Good hydrophilicity can reduce the thickness of water film and increase the heat transfer area
* The contact market between the fluid and the wall can be increased within a certain range. Which has a good effect of enhancing heat transfer
