JIS 표준은 이탄탈륨 티타늄 냉각 장치 핀 관에 실을 뀄습니다

제품 설명

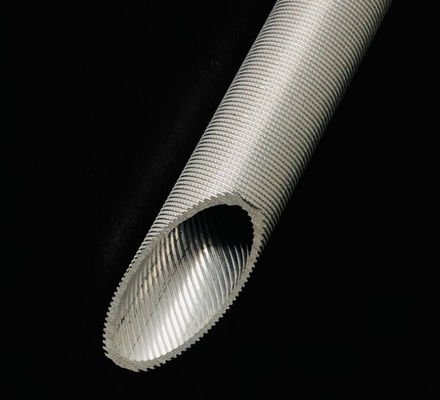

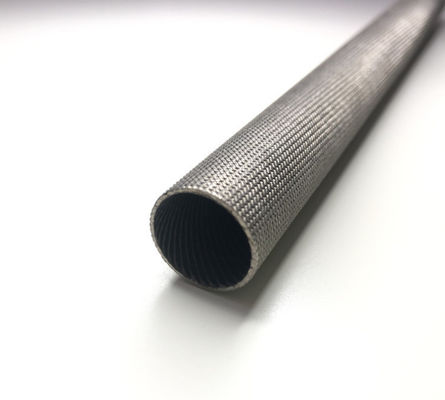

High Efficiency TA2 Titanium Tube Evaporator Internal And External Thread Fin Tube​

Specification range:
Φ( 8.0-38.0)mm Χ Τ ( 0.5-2.0)mm

Shape:

Fin, Pockmarked Surface, Spiral sheet, Point (surface and tube bore)

Material grade:

Titanium and titanium alloy tubes (TA1, TA2, TA3, ta8, ta8-1, ta9, ta9-1, TA10, gr.1, gr.2, gr.7, gr.12, gr.16, etc.)

austenitic stainless steel pipe

SUS304, SUS316L, 321, 904L, etc

Ferritic stainless steel pipe

409,409L,439L,SUS445J2

Duplex stainless steel pipe

2205,2507

Characteristics of high efficiency tube:

1. The heat transfer area between the fluid and the wall is increased, and the total heat transfer of the pipe is increased.

2. Increase the degree of fluid turbulence

1) Improve the contact efficiency between fluid and wall

2) Destroy the

development of fluid thermal boundary layer and enhance the heat transfer capacity of coffin

3) Reduce the resistance of vapor molecules to diffuse to the surface of the night film.

3. Improve water resistance

1) It can reduce the thickness

of water film and increase the heat transfer area

2) At the same time, the contact time between the fluid and the wall is increased in a certain range to enhance the heat transfer.

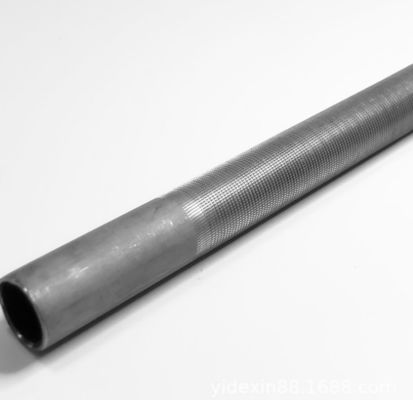

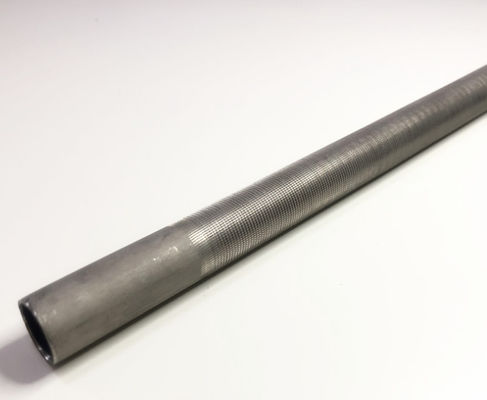

Corrugated titanium tube for radiator of TA2

Raw Material Guarantee:

We use best raw material from China Steel (CSPM) which has better control over the properties and chemical composition of sponge titanium smelting and billet. It relies on CSPM’s strong R&D skills, modern production facilities and national laboratories to ensure that all materials meet the requirements of international standards. As a long-term strategic partner of CSPM, our company will get priority to all kinds of resources and technical support from

Characteristics of titanium and titanium alloy welded pipe:

1. Pure titanium has good weldability, and the weld strength, ductility and corrosion

resistance are basically the same as the base metal.

2. Super corrosion resistance, safe and stable operation, low maintenance or even zero

maintenance, optimal life cycle cost.

3. The wall thickness is uniform, the concentricity of inner and outer diameters is high,

and the surface finish of inner and outer surfaces is consistent.

4. The length is unlimited.

5. Environmental protection in the production process.

This product uses industrial pure titanium (TA2, TA2) as raw material, through cold bending

forming technology, welding technology, eddy current testing, ultrasonic testing and other

production processes to form pipe with completely independent intellectual property rights.

The product has the advantages of uniform wall thickness, high concentricity of internal

and external diameters, high quality, unlimited length, and environmental protection in the

production process, realizing the large-scale, high efficiency, low cost and low cost of

titanium and titanium alloy pipes High precision production.

Characteristics of high efficiency tube

1. The heat transfer area between the fluid and the wall is increased, and the total heat

transfer of the pipe is increased.

2. Increase the degree of fluid turbulence

1) Improve the contact efficiency between fluid and wall

2) Destroy the development of fluid thermal boundary layer and enhance the heat transfer

capacity of coffin

3) Reduce the resistance of vapor molecules to diffuse to the surface of the night film.

3. Improve water resistance

1) It can reduce the thickness of water film and increase the heat transfer area

2) At the same time, the contact time between the fluid and the wall is increased in a

certain range to enhance the heat transfer.
