Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust

Inconel 625 nickel alloy tube

Auto exhaust nickel alloy tube

Precision steel tube with warranty

원래 장소:

Zhejiang/China

브랜드 이름:

TORICH

인증:

ISO9001 ISO 14001 TS16949

모델 번호:

세련된 니켈 파이프

문의하기
조회를 요청하다
제품 상세정보
애플리케이션:
구조 파이프, 유압 파이프, 구조, 유체 파이프, 오일 파이프
외경 (라운드):
30-426 mm
두께:
2-50 mm, 0.1mm -60mm, 0.3-3.5mm, 1-8 mm, 0.5-20 mm
길이:
고객이 요구하는대로 6m 또는 요구 사항으로
기준:
ASTM, DIN, GB, JIS, API
기술:
차가운 끌기, 핫 롤, 콜드 롤, erw, 뜨거운 롤/콜드 그린
등급:
인코넬 625
섹션 모양:
둥글고 직사각형
강조하다:

Inconel 625 nickel alloy tube

,

Auto exhaust nickel alloy tube

,

Precision steel tube with warranty

지불과 운송 용어
최소 주문 수량
1ton
가격
900-1200 USD/Ton
포장 세부 사항
번들 또는 나무 상자에.
배달 시간
제품 20-30 일
지불 조건
L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력
연간 60000 톤/톤
관련 제품
문의하기
86-574-88086983
지금 접촉하세요
제품 설명

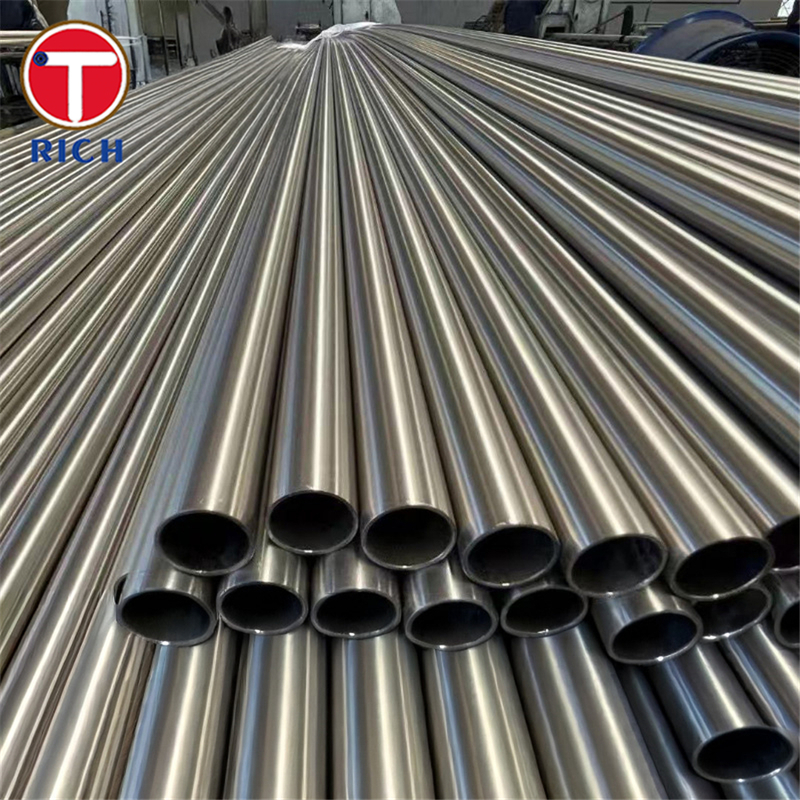

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 0

Polished Nickel Pipe – Inconel 625 Nickel-Based Alloy Tube for Automobile Exhaust

Material Overview

This product is a polished nickel pipe made of Inconel 625, a nickel-based superalloy renowned for its exceptional strength, corrosion resistance, and high-temperature durability, making it ideal for automobile exhaust systems.

1. Composition

Element Content (wt%)
Nickel (Ni) ≥ 58 %
Chromium (Cr) 20–23 %
Molybdenum (Mo) 8–10 %
Iron (Fe) ≤ 5 %
Niobium + Tantalum (Nb + Ta) 3.15–4.15 %
Cobalt (Co) ≤ 1 %
Manganese (Mn) ≤ 0.5 %
Silicon (Si) ≤ 0.5 %
Aluminum (Al) ≤ 0.4 %
Titanium (Ti) ≤ 0.4 %
Carbon (C) ≤ 0.1 %
Phosphorus (P) ≤ 0.015 %
Sulfur (S) ≤ 0.015 %

2. Mechanical Properties


Alloy / Variant Tensile Strength (MPa) Yield Strength (MPa) Elongation (%)
Inconel 625 (general) ≈ 930 MPa ≈ 517 MPa ≈ 42.5 %
VDM Alloy 625 (annealed) —
Altemp 625™ ≥ 827 MPa ≥ 414 MPa 45 %
Inconel 625 (ASM data) 880 MPa —
Inconel 625LCF™ 769.5 MPa 319 MPa 63 %

3. Key Features

  • Solid solution strengthened, with Mo and Nb imparting high strength—no precipitation hardening required.

  • High fatigue, creep, and thermal fatigue strength over a wide temperature range, from cryogenic up to ~982 °C (1800 °F).

  • Excellent resistance to oxidation, carburization, pitting, crevice corrosion, and nearly immune to chloride stress-corrosion cracking.

  • Readily weldable and fabricable with standard processes; excellent machinability in annealed condition.

4. Applicable Standards

Common specifications and standards for Inconel 625 include:

  • ASTM / ASME: B444/B705 (pipe/tube), B704 (welded tube), B443/B446 (plate/bar)

  • International: EN 2.4856, ISO 6207, AMS 5599/5666/5837/5869, ASME SB443/446

In pipe manufacturing contexts (for polished or bright finishes):

  • ASTM B167 / B444, ASME SB167 / SB444, ASTM B829, AMS 5581

5. Applications in Automobile Exhaust Systems

General Application Domains:

  • Automotive & Aerospace: Exhaust ducts, turbocharger systems, engine components, thrust-reversers

  • Marine / Chemical / Energy: Flare stacks, turbine ducting, chemical handling, nuclear components

Automobile Exhaust-Specific Uses:

  • Exhaust headers/manifolds: Excellent at withstanding cyclic thermal loads and corrosive gas exposure.

  • Turbocharger housings & downstream ducting: Benefit from oxidation resistance and high-temperature strength.

  • Downstream exhaust piping: Polished Inconel 625 resists road corrosion (salt and chemical exposure) and maintains structural integrity under thermal cycling.


Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 1

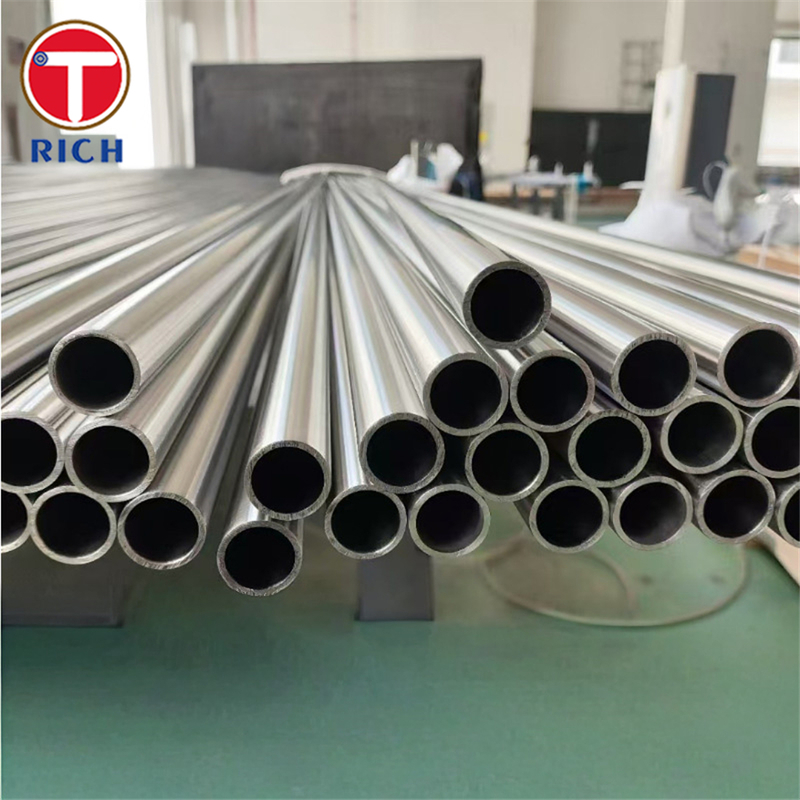

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 2     Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 3

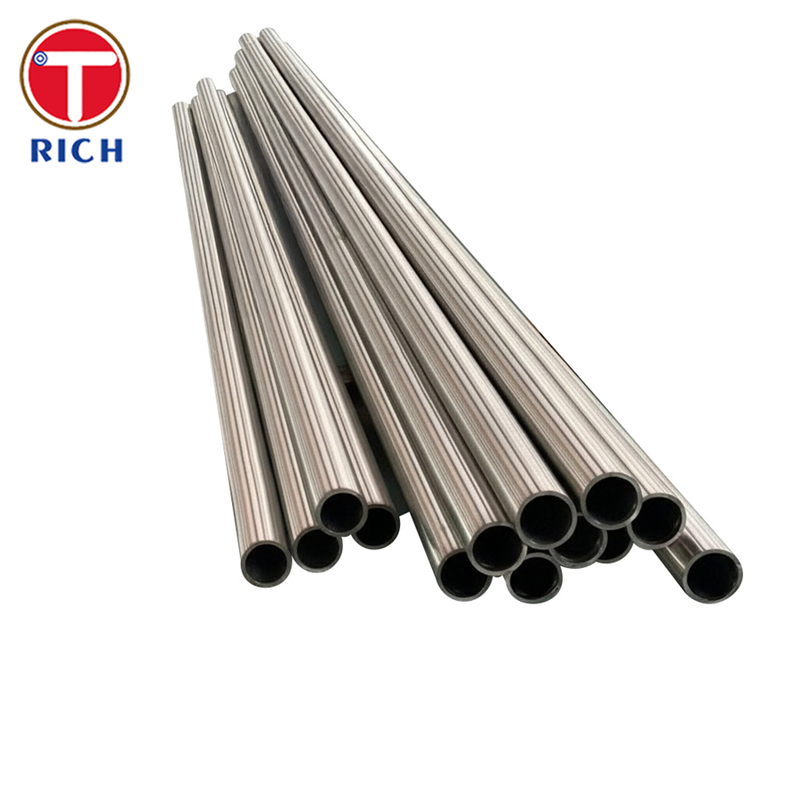

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 4     Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 5


Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 6

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 7

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 8

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 9

Inconel 625 Nickel Alloy Tube 30-426mm OD for Auto Exhaust 10

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.


Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,

it is according to quantity.


Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
