구조 강철 관

JIS G3466 STKR400 STKR490 Square and Rectangular Carbon Steel Tube for Structure Chemical composition: Steel Grade Chemical Composition % C Si Mn P S STKR 400 0.25 max. - - 0.040 max. 0.040 max. STKR 490 0.18 max. 0.55 max. 1.50 max. 0.040 max. 0.040 max. Mechanical proporties: Steel Grade Tensile strength Yield Strength Elongation % N/mm² N/mm² (No.5 test piece) STKR 400 400 {41} min. 245 {25} min. 23 min. STKR 490 490 {50} min. 325 {33} min. 23 min. Type: Seamless and

DN40 STD ASME 2205 UNS S31803 Duplex Stainless Steel Seamless pipe For oil Structural Steel Pipe Product Name Super Duplex Stainless Steel Pipe Material Grade ASTM F SERIES UNS SERIES DIN STANDARD F51 UNS S31803 1.4462 F52 UNS S32900 1.446 F53 / 2507 UNS S32750 1.441 F55 / ZERON 100 UNS S32760 1.4501 F60 / 2205 UNS S32205 1.4462 F61 / FERRALIUM 255 UNS S32505 1.4507 F44 UNS S31254 SMO254 Standard: SAE 1026,AISI 1026,STKM 15A/C Outer Diameter: 20mm to 200mm Wall Thickness: 0

Excellent OD / ID Controlled Special Steel Pipe Cold Drawn Shaped Steel Tubes GB/T 3094 China leading manufacturers and suppliers of Special Pipes, and we are specialize in Engineering Special Steel,Elliptical Steel Tube,Triangle Steel Tube, Profile Steel Tube,Profile Steel Pipe,etc. TORICH is specialized in producing and manufacturing profile steel pipes in China, and we can make different shapes of profile steel tubes according to customers drawing and design. Seamless

Special Shape Steel Tube,Painted Rifle Seamless Carbon Steel Pipe With Fin On Two Sides Seamless Rifle Steel Tube, it is made by Carbon and Alloy Steel, produced by cold drawn, Rifle Tubes are used in Boilers and Super Heaters etc, for better heating efficiency. Product information: Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355 Grade: BS, JIS, GB, DIN, ASTM, API, Shape: Omega Wall thickness: 0.5-50mm Length: up to 12m, or according to

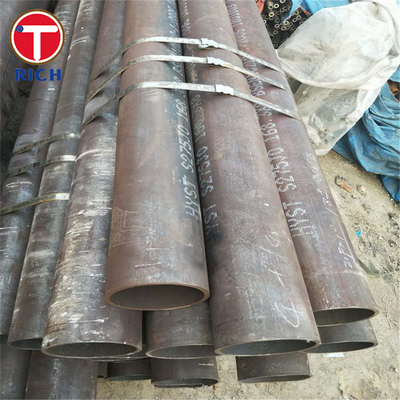

TORICH EN10210 Hot Finished Structural Hollow Section of Non-Alloy Steel Tube Product Description: OD: 6-140mm WT: 0.4-12mm Length: 3-12m DIN EN 10210-1: Hot finished structural hollow sections of non-alloy and fine grain steels Cold forming: Process is done at ambient temperature Structural hollow section manufacturing process: Structural hollow sections are manufactured by seamless or by welding. Welded sections manufactured by continuous process. Electric welded hollow

Rectangular Welded Hot Dip Galvanized Steel Tube For Construction Structure​ Application:Suitable for mechanical, construction and other structural purposes, and the straight seam welded steel pipe with an outer diameter of not more than 711mm, can also be applied to general welded steel pipe for fluid transportation size:L--4~12m OD--5~711mm WT--0.5~5.5mm Grade:10,20,Q195,Q215,Q213,Q275 Manufacture method:The steel pipe shall be made of hot rolled steel strip or cold rolled

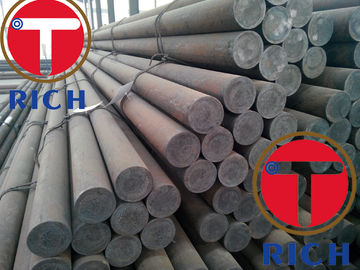

JIS G4051 S45C Carbon Steel Round Bar Medium Carbon Steel for Machine Structural Use Material Overview S45C is a medium-carbon steel grade specified under JIS G4051, intended for machine structural applications. With a carbon content of approximately 0.45%, it provides a balanced combination of strength, toughness, and machinability. It is commonly supplied as hot-rolled, normalized, annealed, or quenched-and-tempered round bar for various mechanical components. Specification

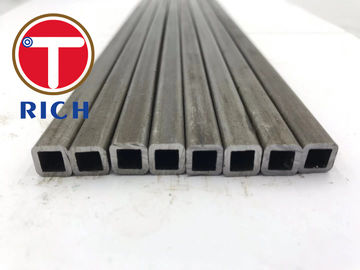

ASTM A500 Cold-Formed Welded and Seamless Carbon Structural Square Steel Tubes Applications: ASTM A500 Cold-Formed Welded and Seamless Carbon Structural Tubing in Shapes Square Steel Tubes Basic detail information 1. Size: O.D.:5-420mm W.T.:0.5-50mm L:max12000mm 2. Standard: ASTM A500 3. Certification: ISO9001, ISO14001,TS16949 4. Applications: for construction of bridges, and buildings, and for general structural purposes Package: 1) Bundle 2) In Bulk 3) Bags 4) As Clients'

ASTM A500 Cold-Formed Welded and Seamless Carbon Steel Structural Tubing in Rounds and Shapes Applications: For consutructions of bridges and buildings For general structural purpose Size range: O.D. 230-600mm W.T. 1-24mm Length max 12000mm Chemical Requirement: Chemical Requirement Element Grade A, B, D Grade C Heat Analysis Product Analysis Heat Analysis Product Analysis Carbon, max 0.26 0.3 0.23 0.27 Manganese, max 1.35 1.40 1.35 1.4 Phosphorus, max 0.035 0.045 0.035 0.045
