열교환기 관

고압 응용 분야를 위한 20G 보일러급 심리스 오메가 튜브입니다. 정확한 치수를 위해 냉간 압연되었으며 GB/T 5310 인증을 받았습니다(ASTM A192/A210과 비교). 엄격한 공차로 맞춤형 길이 1-12m. 열 전달 효율과 압력 무결성을 위해 제작되었습니다.

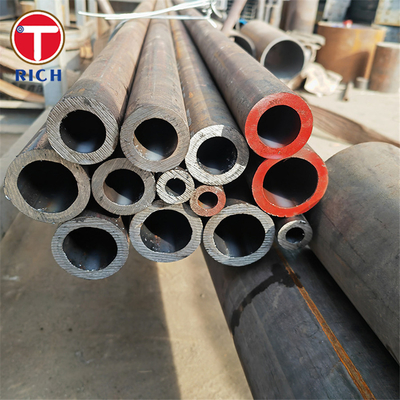

SA179 ST35.8 Mild Seamless Steel Round Pipe Thick Wall Pipe Boiler Chemcial Fertilizer Material: Low Carbon Steel Production: Seamless Cold Drawn Size range: O.D.:3.2-76.2mm W.T.:1-15mm L: according to customer requirement. Steel Grade and Chemical Compositions: C 0.06-0.18 Mn 0.27-0.63 P ≤0.035 S ≤0.035 Mechanical Properties Tensile Streghth: min ksi[Mpa] 47[325] Yield Point: min ksi[Mpa] 26[180] Elongation: ≥35% Hardness: ≤72HRB Heat Treatment: Tubes are heat treated after

Fin Tube Type and Material No. Fin Type Fin Material Tube Material 1 Extruded Fin Fin Tube SB209 - B209 Aluminium Alloy 1050 or 1060 SB75 - B75 Copper SA179 - A179 Carbon Steel SA213 - A213 Stainless Steel SB75 - B75 Copper SB111 - B111 Copper Alloy 2 G Fin Fin Tube / Embeded Fin Tube EN573-3 Aluminium Alloy 1050 or 1060 SB152 - B152 Copper 3 L Fin Fin Tube 4 LL Fin Fin Tube 5 KL Fin Fin Tube Fin Tube Details Tube O.D 8-51mm Wall Thickness Please advice Length Usually ≤12mtr

TORICH Low carbon steel Precision ASTM A178 Welded and Drawn Boiler Tubes 1. Available Size Range: OD Thickness mm inch mm SCH 88.9~1422 3'~ 56' 2.11~140 ≥SCH10 *If the steel grades and size you are looking for are not listed above, please contact us for further information . 2. Application Power plant; Chemical Fertilizer; Petrochemicals; Offshore Oils; Gas Productions; Refineries and etc. 3. Standards ASTM A106 ——Standard Specification for Seamless Carbon Steel Pipe for

4130 Seamless Steel tube/pipe for Hydraulic Pipe Fluid Pipe Product Seamless Steel Tube Material Carbon Steel/ Alloy Steel Section Shape Round Grade 10#(St37.4,St35,St37,E235),20#(St45,St44,E255),45#(Ck45),16Mn(St52) and other special material. Standard DIN2391,EN10305-1,GB/T3639 Certification ISO9001 Technique Cold rolled & Cold drawn Application Widely used in automobiles, motorcycles, gas springs, hydraulic machinery, construction machinery and refrigeration industry.

ASME SA213 Grade T12 Internal Thread Tube — Seamless Low-Alloy Tube for Heat Exchangers Material Overview ASME SA213 Grade T12 (UNS K11562) is a seamless chromium–molybdenum (Cr-Mo) low-alloy steel tube widely specified for boiler, superheater, and heat-exchanger service where elevated-temperature strength and pressure integrity are required. The ASME SA-213 specification is the Code adoption of ASTM A213/A213M for these seamless alloy-steel tubing applications. Specification

ASTM A213 Alloy Steel Seamless Pipe (Tube) — Large Diameter, Thick-Wall for Boiler Service Material ASTM A213/A213M covers seamless ferritic and austenitic alloy-steel tubes intended for boilers, superheaters, and heat exchangers . Tubes are supplied as hot-finished or cold-finished , and can be specified with the heat-treatment condition required for high-temperature pressure parts. (Reference: ASTM A213/A213M) Specifications Manufacturing : Seamless; hot-finished or cold

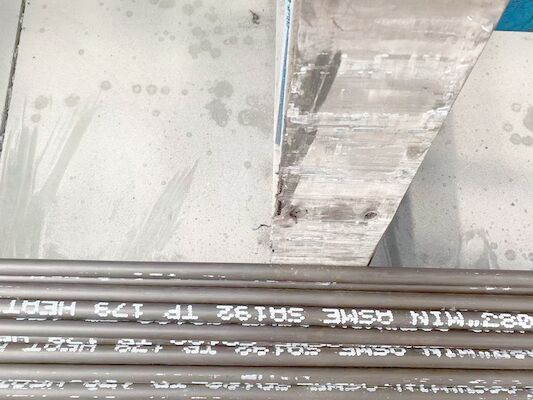

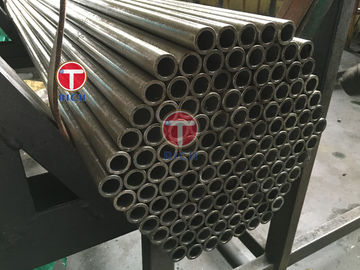

Torich ASTM A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Brief introduction: Name A179 OD 420mm 24mm High Precision Seamless Steel Tube Cold Rolled Steel Pipe Standard ASTM A79 Production method Cold drawn Section shape Round OD 5-420mm WT 0.5-50mm Length Max12000mm Application Boilers, supreheaters, heat exchangers, condenser, U bend tubes according to customer request Mechanical properties Tensile strength:325Mpa Elongation: ≥35 % Hardness:

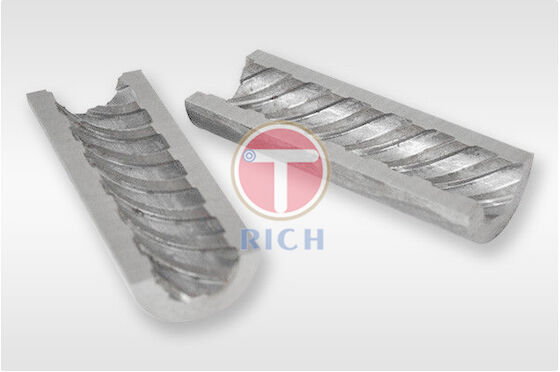

8 Inner Ribbed Tube SA210C / A1 SA213 T2 28.6X6.2 38.1X7.5 63.5X7.5 66.7X8 Inner-Ribbed Seamless Steel Tube for High-Efficiency Heat Transfer Inner-ribbed seamless steel tubes (also known as internally threaded tubes) are precision cold-drawn or cold-rolled tubes engineered to enhance heat transfer efficiency in high-temperature environments. By forming continuous spiral ribs on the inner wall, these tubes significantly improve fluid turbulence, reduce steam film formation,
