hydraulic cylinder pipe
"
Ss304 이음새가 없는 냉각 압연 유압 실린더 연마된 관
Hydraulic Cylinder using 304 Stainless Seamless Cold Drawn Steel Honed Tube Standard: EN10305-1 Steel Grade: E 235 E355 Etc Material: Carbon And Alloy Steel Grade I.D.: 40-400mm W.T.: ≥5mm Technique: Cold Draw Material:304 316 ect stainless steel. Place Of Origin: Zhejiang, China (Mainland) Surface Treatment: As Customer's Required Length: 3m Straightness:0.5/1000mm Tolerance of OD:0 -0.05 +0.05 Tolerance of ID:+0--0.03,+0.03--0.05,+0.05--0.10 Inside surface smooth finish:0.2
유압 실린더 정확성 용접 스틸 강관 ASTM A513 냉각 압연 DOM 강관

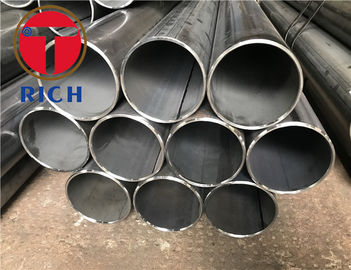

Hydraulic Cylinder Precision Cold Drawn Welded Steel Pipe ASTM A513 DOM Tubes ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range:
실린더 배관 열간압연 Astm 이음새가 없고는/용접된 갈린 A-668 A312 기준
ASTM A-668 ASTM A312 Seamless and Welded Pipes Honing Grinding Tube Product Name Honing Grinding Steel Pipe Usage Used for low pressure liquid delivery, such as water, gas, and oil. Process LSAW - UO(UOE),RB(RBE),JCO(JCOE) DSAW -Double Submerged arc welded Standard API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711 Certificate API 5L PSL1 / PSL2, API 5CT Out Diameter 355.6mm– 1626mm Wall Thickness 8 -50mm Length up to 12m Steel Grade API 5L PSL1 / PSL2
고 정밀도 무계목 강관 E355 유압 실린더 EN10305-1 E355 E235
High Precision Seamless Steel Pipe E355 Hydraulic Cylinder EN10305-1 E355 E235 1.Basic information of precision seamless steel pipe: Standard:EN10305-1,DIN2391 Type: Seamless Cold-Drawn Application:honed steel tubes , oil cylinder, motorcycle, auto industry,etc Section Shape: Round Technique: Cold Drawn Material: E235,E355,E215 OD: 5-420 mm WT: 0.5-50 mm Length: Max 12000mm Additional Info: Packaging: Anti rust, woven bags with two slings Transportation: Ocean,Land,Air
EN10305-1 정밀도 강철 관, 지정된 길이에 액압 실린더 배관 절단
EN10305-1 Precision Steel Tube , Hydraulic Cylinder Tubing cutting to Specified Length TORICH is one of the main suppliers for precision seamless steel pipe, as a top precision steel tube manufacturers in China, we have been exporting to ver 56 counties worldwide for high precision seamless steel pipe, which is widely used in Hydraulic Cylinders. Standard for precision metal tubing: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Precision Seamless Steel Tube are for
St52는 가스 용기를 위한 냉각 압연 이음 없는강관을 기름을 쳤습니다
St52 Hydraulic Steel Pipe Gas Cylinder Honed Tube Manufacture Method: Cold drawn, hot rolled+deep hole bored Gas Cylinder Honed Tube Certification: ISO9001, SGS, St52 Honed Tube Material: Carbon steel,alloy steel, stainless steel Standard & Grade: DIN2391-2 ST52,EN10305-1 E355,C45E,25CrMo4,42CrMo4, CK45,E410, E470,ASTM A519 SAE1020,SAE1026,SAE1045,SAE1518,SAE1541, SAE4130,SAE4140,SAE4145,SAE4340,etc. Size Range: ID of 300mm max for cold drawing, ID of 500mm for deep hole
액압 실린더/압축 공기를 넣은 전원 시스템을 위한 EN10305-4 정밀도 이음새가 없는 강철 관
EN10305-4 Seamless Cold Drawn Hydraulic Cylinder Steel Tubes for hydraulic and pneumatic power systems Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Steel tubes for precision applications. Technical delivery conditions. Applications: Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber inner cylinder Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm Steel Grade C Si Mn P S Al Steel name Steel number max max max max max min E215 1.0212 0.10 0.05 0.70 0
정밀 무선 강철 수압 실린더 튜브
Precision Seamless Cold Drawn Hydraulic Cylinder Steel Tubes EN10305-1 E235 E355 +Cc +LCc +SR +Ad +N NBK Standard: EN10305-1 Seamless Cold Drawn/Rolling Steel Tubes Steel tubes for precision applications. Technical delivery conditions. Applications: Telescopic Cylinders/Hydraulic Cylinders/Auto shock absorber innder cylinder Size range: O.D.:6-650mm W.T.:1-35mm L:max12000mm Steel Grade C Si Mn P S Al Steel name Steel number max max max max max min E215 1.0212 0.10 0.05 0.70 0

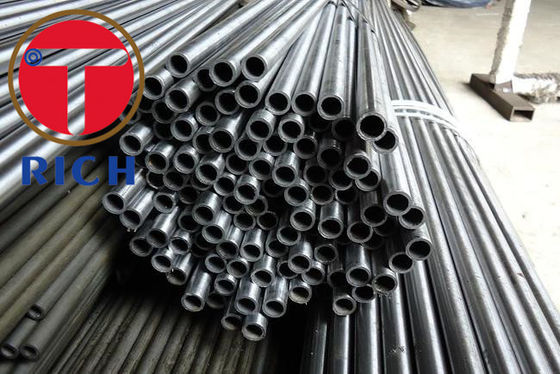

유압 실린더 시스템을 위한 ST52.4 NBK 정밀 스틸 튜브인 DIN2391-1 ST35, ST45, ST55
DIN2391-1 ST35, ST45, ST55, ST52.4 NBK Precision Steel Tube for Hydraulic Cylinder System Standard: DIN2391-1 Technique: Cold Drawn, Cold Rolled. Size range: OD: 4-76mm, WT:0.5-8mm, Length: ≤12m, or at buyer's request. Material: ST35, ST45, ST55, ST52.4 etc Surface quality: Without oxidization, No crack, No fold, No rolling fold, No scar, No laminar defect Quality grades Tubes shall be supplied in the following quality grades: for precision steel tubes, that do not require an
