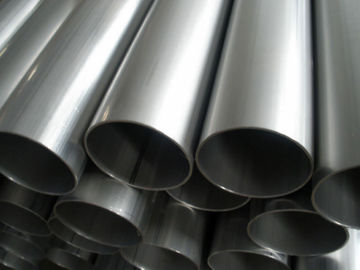

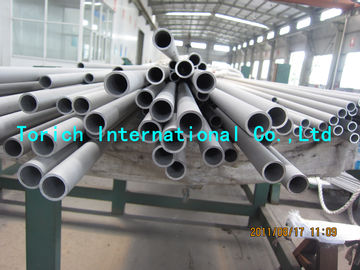

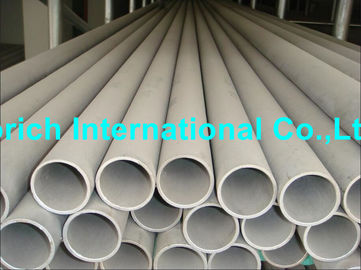

니켈 - 크롬 - 몸리브덴 - 이음새가 없는 304 스테인리스 배관이 콜럼륨에 의하여 합금합니다
제품 상세정보
스테인리스 관 강철
,대직경 스테인리스 관
ASTM B444 니켈 크롬 몸리브덴 콜럼륨 합금 (UNS N06625와 UNS N06852)와 니켈 크롬 몸리브덴 실리콘 합금 (UNS N06219) 관과 관
급료: | TP304 | TP304L | TP304LN | TP316 | TP316L | TP316LN | TP316LN | TPXM-29 | TP304N |
UNS | S30400 | S30403 | S30453 | S31600 | S31603 | S31653 | S31653 | S24000 | S30451 |
최대 C | 0.08 | 0.035 | 0.035 | 0.080 | 0.035 | 0.035 |
|
|
|
최대 Mn | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
|
|
|
최대 P | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 | 0.045 |
|
|
|
최대 S | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 | 0.030 |
|
|
|
최대 Si | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
|
|
|
크롬 | 18.0-20.0 | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 16.0-18.0 |
|
|
|
Ni | 8.0-11.0 | 8.0-13.0 | 8.0-12.0 | 11.0-14.0 | 10.0-14.0 | 11.0-14.0 |
|
|
|
Mo | … | … | … | 2.00-3.00 | 2.00-3.00 | 2.00-3.00 |
|
|
|
티타늄 | … | … | … | … | … | … |
|
|
|
콜럼륨 | … | … | … | … | … | … |
|
|
|
탄탈 | … | … | … | … | … | … |
|
|
|
질소 | … | … | 0.10-0.16 | … | … | 0.10-0.16 |
|
|
|
바나듐 | … | … | … | … | … | … |
|
|
|
구리 | … | … | … | … | … | … |
|
|
|
세륨 | … | … | … | … | … | … |
|
|
|
붕소 | … | … | … | … | … | … |
|
|
|
알루미늄 | … | … | … | … | … | … |
|
|
|
급료: | TP316N | … | … | … | … |
UNS | S31651 | N08367 | N08926 | S31254 | S32654 |
Tensil 필요조건
급료 | 장력 강도 | 항복 강도 최소한도 ksi | 신장 | |
304, 316 | 75 [515] | 30 [205] | 35 | |
304L, 316L | 70 [485] | 25 [175] | 35 | |
XM-29 | 100 [690] | 55 [380] | 35 | |
304N, 316N | 80 [550] | 35 [240] | 20 | |
304LN, 316LN | 75 [515] | 30 [205] | 35 | |
-
DOM 생산을 가진 용접된 강철 관을 냉각 압연하는 자동차 부속 ASTM A513
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
25mm 직경 유압 장치를 위한 밝은 어닐링 이음새가 없는 강철 관
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
유압 장치를 위한 정밀도 이음새가 없는 까만 인산 처리 강철 관
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
정밀도 이음새가 없는 직류 전기를 통한 강철 관 DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
