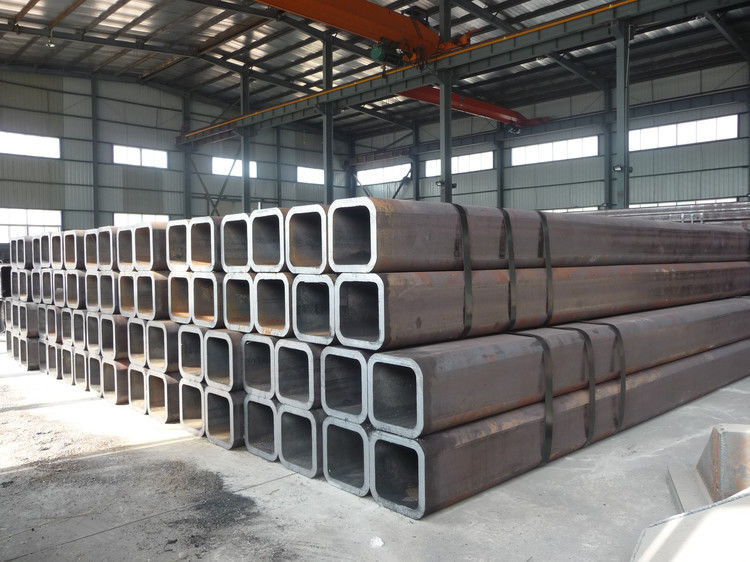

철도 건축 감기에 의하여 형성되는 이음새가 없는 강철 사각 배관 ASTM A500

기본 특성
원산지: 중국
브랜드 이름: Torich
인증: ISO 9001:2008 , TS16949 , ABS , CCS , DNV , GL
모델 번호: 이음새가 없는 사각 및 장방형
부동산 거래
최소 주문 수량: 5mt
가격: 협상 가능
지불 조건: L / C, T / T
공급 능력: 7000MT/Month
제품 요약
철도 건설용 직접 철강 정면 파이프, 특수 철강 파이프 표준: ASTM A500 강철 직사각형 튜브 냉형 용접 및 원형의 원형 및 모양의 매듭없는 탄소 구조관 응용 프로그램: 다리 건설용및 건물, 그리고 일반 구조적 용도 크기 범위: 네모 튜브 과다 투여 :20-20에서 500-500mm W.T.:1-24mm L:max12000mm 직사각형 튜브 과다 복용 :20-30에서 400-600mm W.T.:1-24mm L:max12000mm 텐실 요구 사항 둥근 구조 튜브 A급 B급 C급 D급 팽창 강도,분,psi ((Mpa) 45 ...

제품 상세정보

강조하다:

구조 강철 사각 배관

,

직사각형 강철 파이프

Dimension:: 20-20에서 500-500mm*1-24mm*12000mm
Steel Grade:: GradeA, GradeB, 등급을 매기는 GradeC
Application:: 교량의 건축, 그리고를 위한 건물 그리고 일반적인 strcutrual 목적
Standard:: ASTM A500
제품 설명

철도 건설용 직접 철강 정면 파이프, 특수 철강 파이프

표준: ASTM A500 강철 직사각형 튜브
냉형 용접 및 원형의 원형 및 모양의 매듭없는 탄소 구조관

응용 프로그램:

다리 건설용및 건물, 그리고 일반 구조적 용도

크기 범위:
네모 튜브 과다 투여 :20-20에서 500-500mm W.T.:1-24mm L:max12000mm
직사각형 튜브 과다 복용 :20-30에서 400-600mm W.T.:1-24mm L:max12000mm

텐실 요구 사항
둥근 구조 튜브
A급 B급 C급 D급
팽창 강도,분,psi ((Mpa) 45 (310) 58 ((400) 62(425) 58 ((400)
양력 강도,분,psi ((Mpa) 33(230) 42(290) 46(315) 36 ((250)
2인치 (50mm) 분, % 25 23 21 23

모양의 구조관

A급 B급 C급 D급
팽창 강도,분,psi ((Mpa) 45 (310) 58 ((400) 62(425) 58
양력 강도,분,psi ((Mpa) 39(270) 46(315) 50(315) 36 ((250)
2인치 (50mm) 분, % 25 23 21 23
