| 브랜드 이름: | TORICH |
| 모델 번호: | ASTM A213 |
| MOQ: | 1Ton |
| 가격: | 1000-1300 USD/Ton |
| 지불 조건: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| 공급 능력: | 60000 Ton/Tons per Year |
ASTM A213 covers seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. Among these, seamless austenitic stainless steel pipes are widely used due to their excellent corrosion resistance, high-temperature strength, and ductility. The base material is typically an austenitic stainless steel, with popular grades including 304, 304L, 316, and 316L.

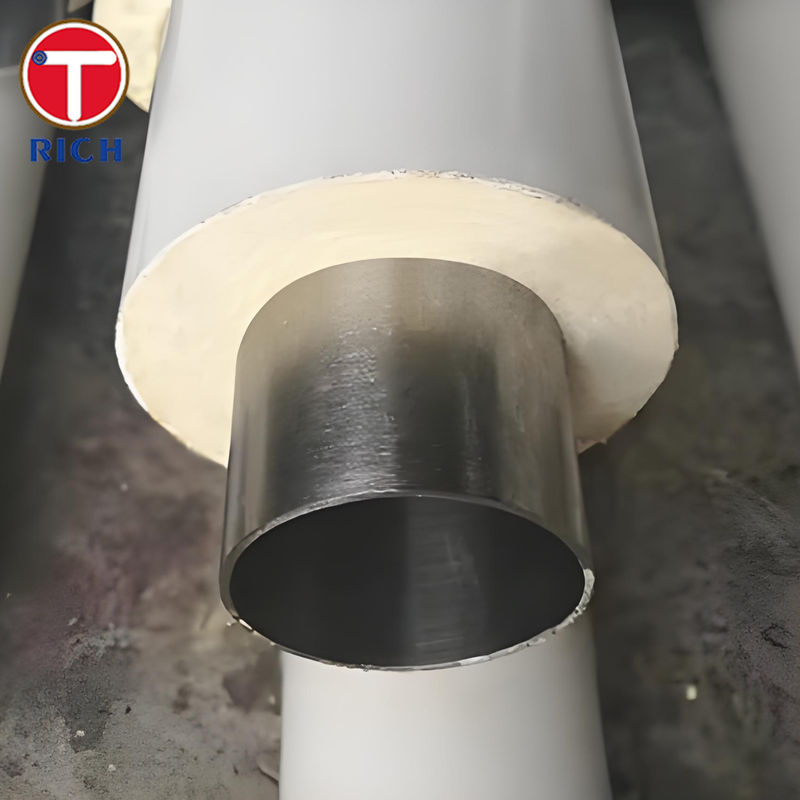

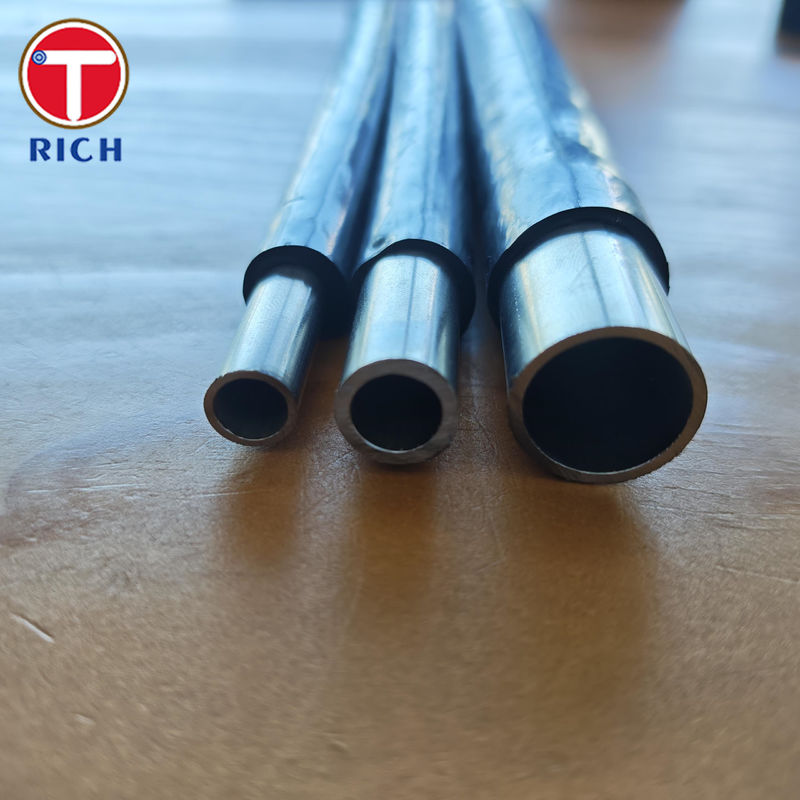

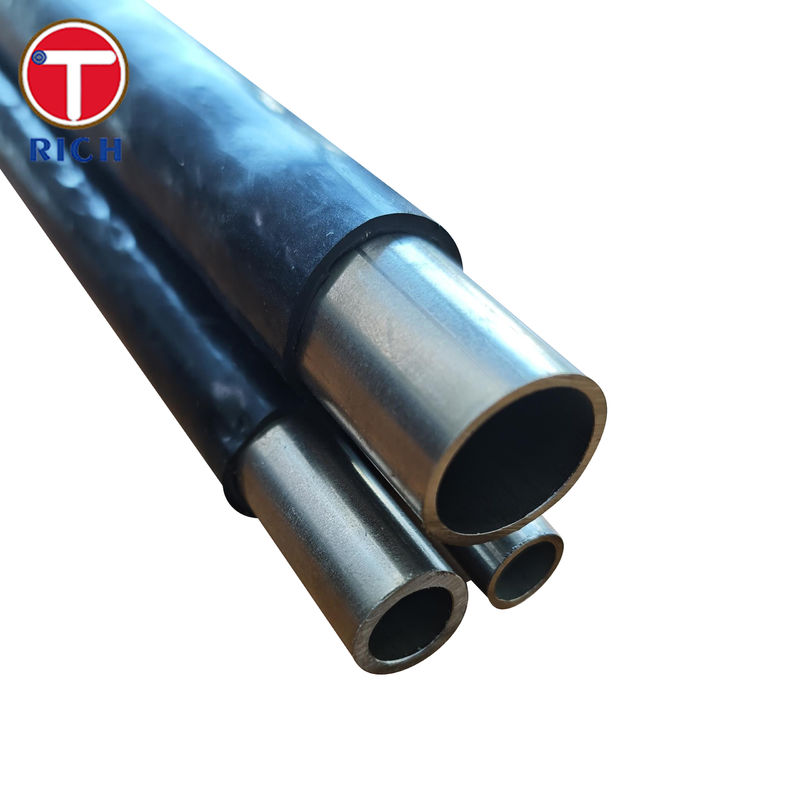

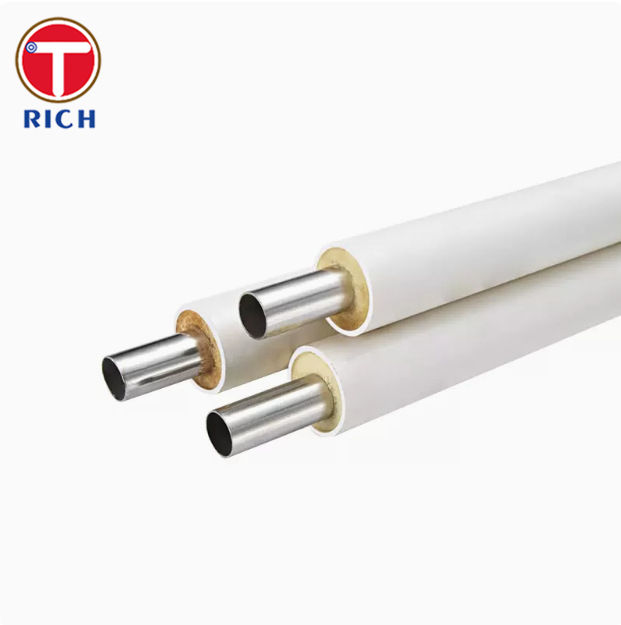

The PVC coating on steel pipes serves as a protective layer, enhancing corrosion resistance especially for insulation applications by providing additional barrier protection against moisture, chemicals, and physical damage.
| Element | 304 (%) | 304L (%) | 316 (%) | 316L (%) |
|---|---|---|---|---|
| Carbon (C) | 0.08 max | 0.03 max | 0.08 max | 0.03 max |
| Manganese (Mn) | 2.00 max | 2.00 max | 2.00 max | 2.00 max |
| Silicon (Si) | 1.00 max | 1.00 max | 1.00 max | 1.00 max |
| Phosphorus (P) | 0.045 max | 0.045 max | 0.045 max | 0.045 max |
| Sulfur (S) | 0.030 max | 0.030 max | 0.030 max | 0.030 max |
| Chromium (Cr) | 18-20 | 18-20 | 16-18 | 16-18 |
| Nickel (Ni) | 8-10 | 8-12 | 10-14 | 10-14 |
| Molybdenum (Mo) | — | — | 2-3 | 2-3 |
| Property | 304 | 304L | 316 | 316L |
|---|---|---|---|---|
| Tensile Strength (MPa) | 515 min | 485 min | 515 min | 485 min |
| Yield Strength (MPa) | 205 min | 170 min | 205 min | 170 min |
| Elongation (%) | 40 min | 40 min | 40 min | 40 min |
| Hardness (HRB) | Max 95 | Max 95 | Max 95 | Max 95 |
| ASTM A213 Grade | ASTM A312 Equivalent | EN Standard Equivalent | JIS Equivalent |
|---|---|---|---|
| TP304 | TP304 | 1.4301 (AISI 304) | SUS304 |
| TP304L | TP304L | 1.4307 (AISI 304L) | SUS304L |
| TP316 | TP316 | 1.4401 (AISI 316) | SUS316 |
| TP316L | TP316L | 1.4404 (AISI 316L) | SUS316L |
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
