Place of Origin:
Zhejiang/China
브랜드 이름:
TORICH
인증:
ISO9001 ISO 14001 TS16949
Model Number:
ASTM A270

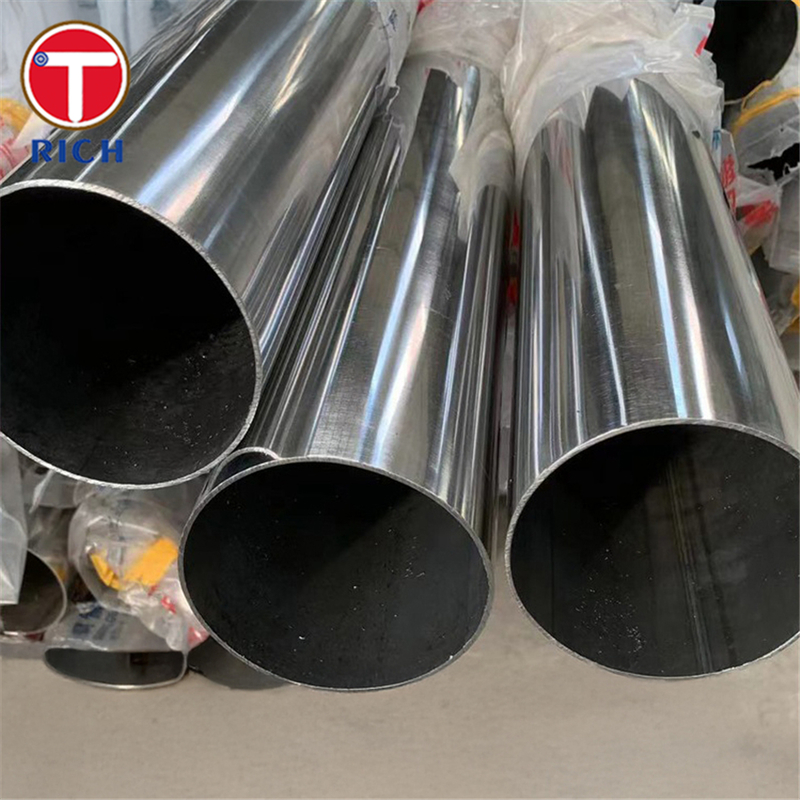

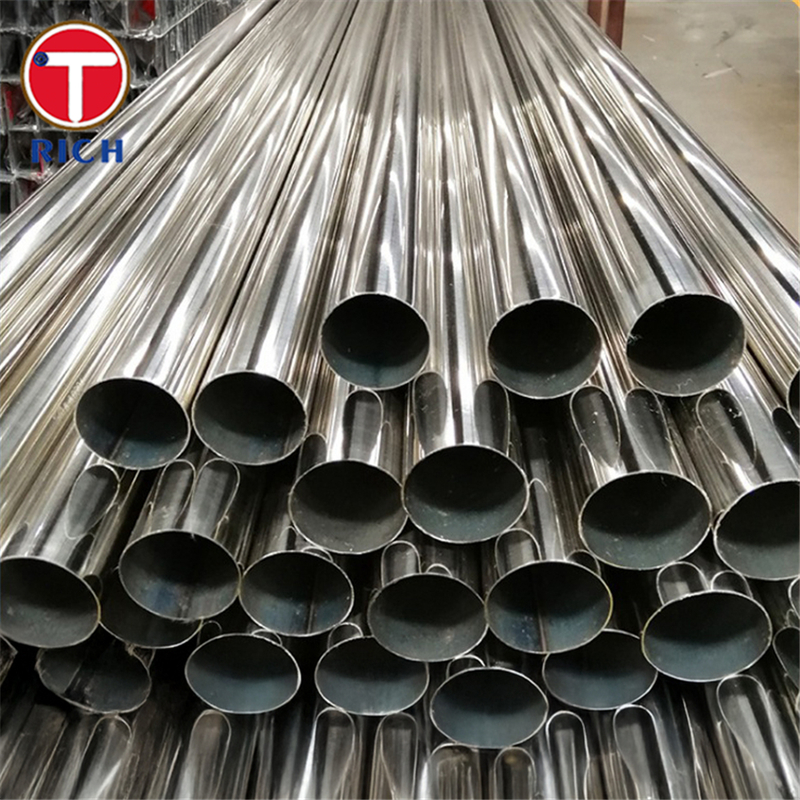

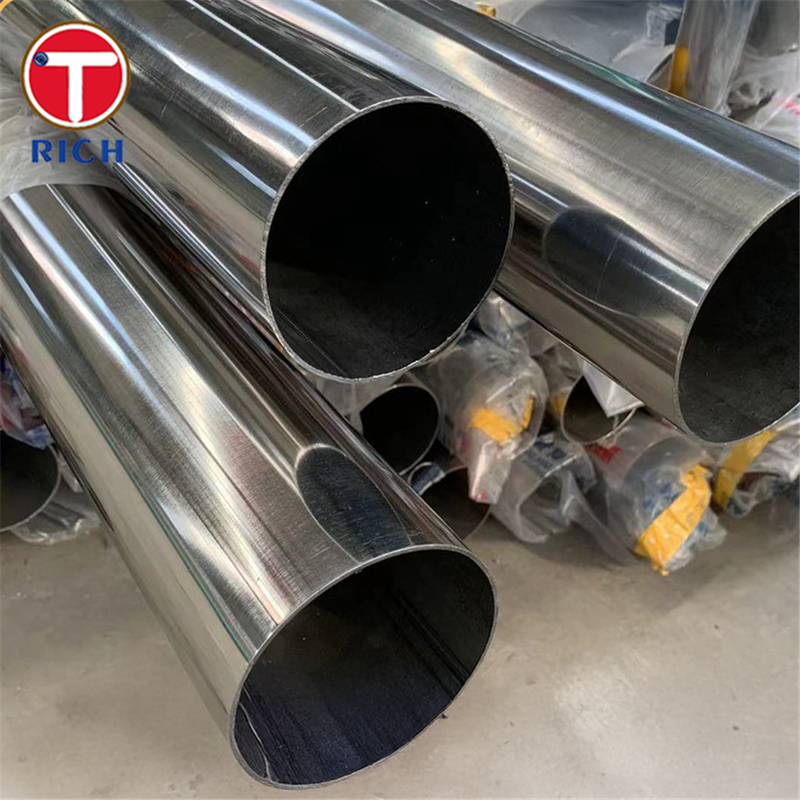

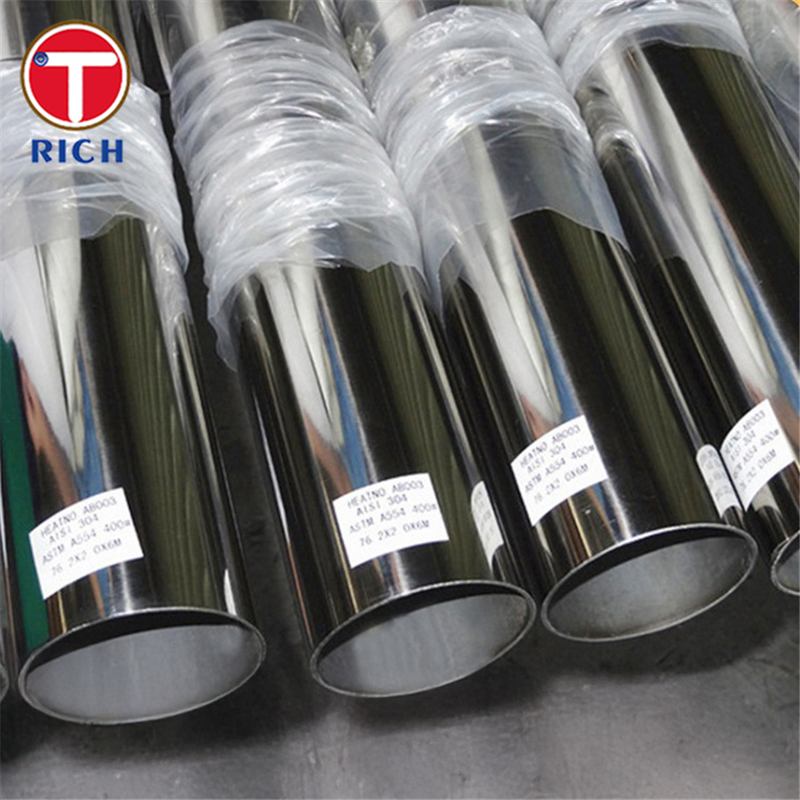

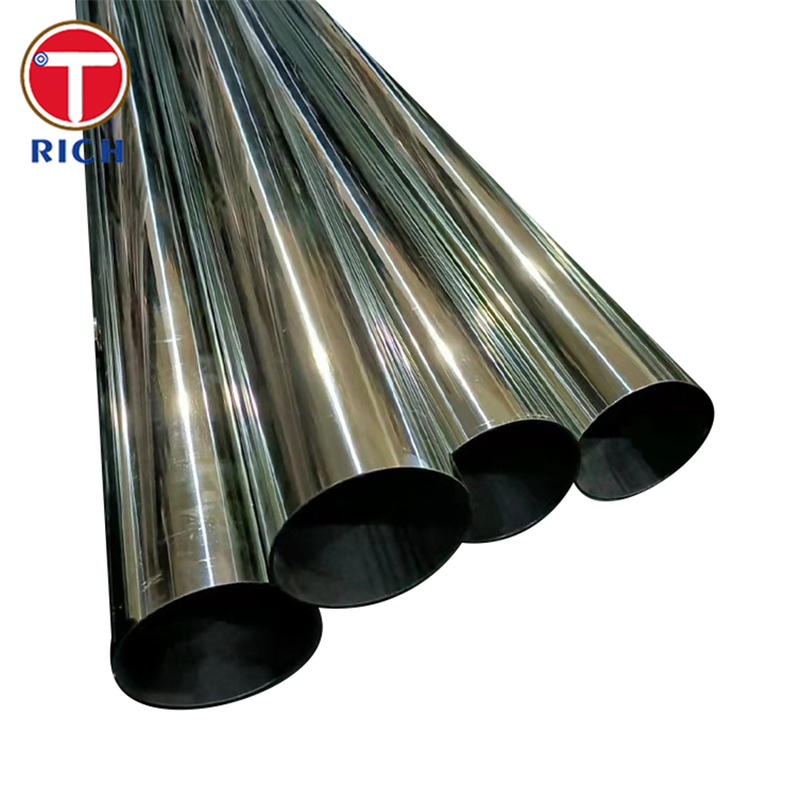

ASTM A270 specifies the requirements for stainless steel sanitary tubing used primarily in the healthcare, pharmaceutical, and food industries. The tubing must be made from austenitic stainless steels known for corrosion resistance, durability, and cleanliness. Common materials under ASTM A270 include:
These materials ensure hygienic, corrosion-resistant, and mechanically robust tubes suitable for sterile and clean environments.
| Specification | Description |
|---|---|
| Standard | ASTM A270 |
| Type | Welded Austenitic Stainless Steel Tubing |
| Finish | Mill finish or Polished (typically 2B or sanitary finishes) |
| Dimensions | Various OD and wall thicknesses per ASTM A269 or ASTM A312 standards referenced |
| Testing | Hydrostatic, intergranular corrosion, weld quality, dimensional tolerances |
| Grade | C (max) | Mn (max) | Si (max) | P (max) | S (max) | Cr (min) | Ni (min) | Mo (min) | N (max) | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| TP304 | 0.08% | 2.00% | 0.75% | 0.045% | 0.030% | 18.00-20.00% | 8.00-10.50% | - | 0.10% | - |
| TP316 | 0.08% | 2.00% | 0.75% | 0.045% | 0.030% | 16.00-18.00% | 10.00-14.00% | 2.00-3.00% | 0.10% | - |
| 2205 | 0.03% | 2.00% | 0.80% | 0.030% | 0.020% | 22.00-23.00% | 4.50-6.50% | 3.00-3.50% | 0.20% | N 0.10-0.20%, Cu max 0.50% |
| 2507 | 0.03% | 1.20% | 0.80% | 0.030% | 0.020% | 24.00-26.00% | 6.00-8.00% | 3.00-5.00% | 0.20% | N 0.24-0.32% |
| 2003 | 0.07% | 5.00-8.00% | 1.00% | 0.040% | 0.030% | 16.50-18.50% | 3.00-5.00% | - | 0.20% | High Mn content for stability |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| TP304 | 520-750 | ≥205 | ≥30 | ≤90 |
| TP316 | 520-750 | ≥205 | ≥30 | ≤90 |
| 2205 | 620-880 | ≥450 | ≥25 | ≤95 |
| 2507 | 750-900 | ≥550 | ≥25 | ≤95 |
| 2003 | 520-720 | ≥240 | ≥35 | ≤85 |
| ASTM A270 Grade | Equivalent Standard | Equivalent Grade in Other Specs |
|---|---|---|
| TP304 | UNS S30400 / EN 1.4301 | AISI 304, DIN X5CrNi18-10 |
| TP316 | UNS S31600 / EN 1.4401 | AISI 316, DIN X5CrNiMo17-12-2 |
| 2205 | UNS S32205 / EN 1.4462 | ASTM A789, DIN GX2CrNiMoN22-5-3 |
| 2507 | UNS S32750 / EN 1.4410 | ASTM A790, DIN GX2CrNiMoCuN25-6-3-2 |
| 2003 | N/A (special high Mn austenitic) | Proprietary grade, similar to high Mn austenitic stainless steels |
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
·
