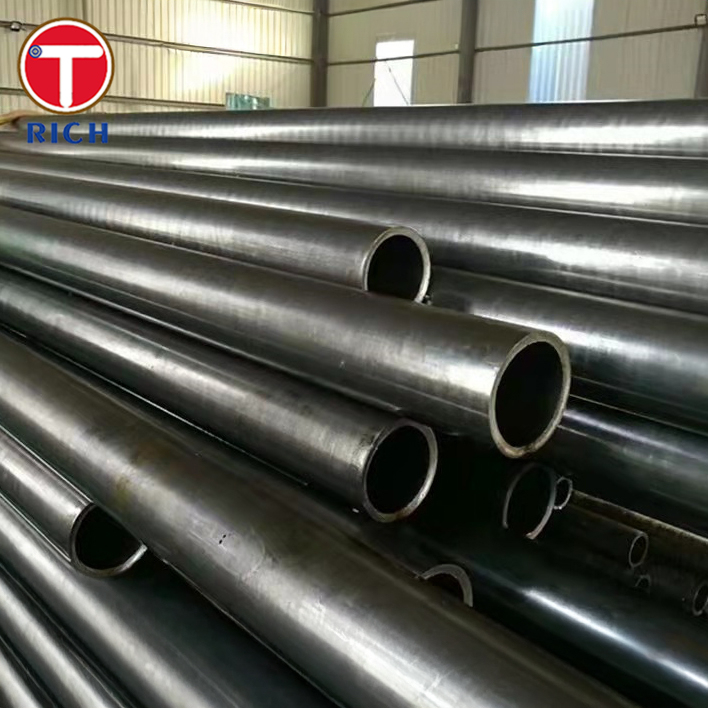

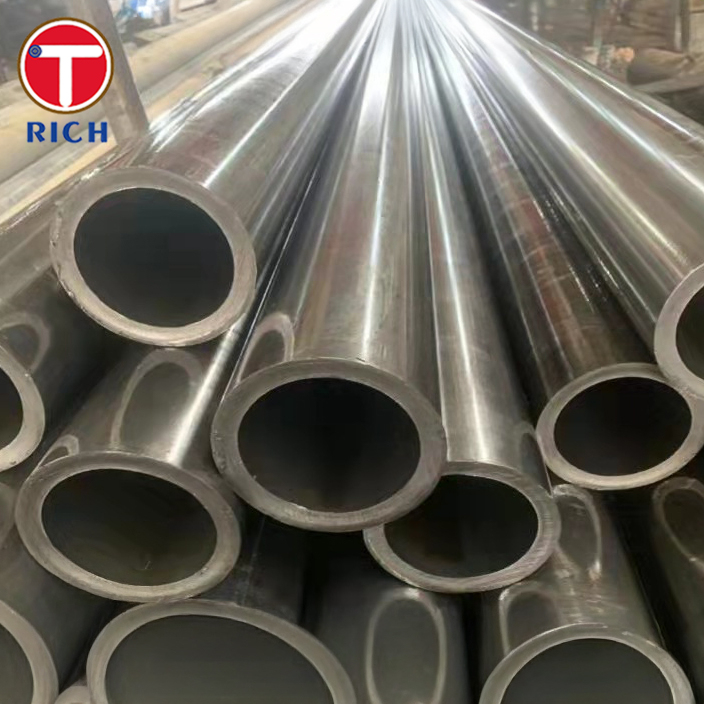

SAE J525 tubing is manufactured from high-quality mild carbon steel, processed by electric resistance welding and then fully normalized to achieve uniform grain structure and excellent ductility. It is specifically designed as a hydraulic tube with thick walls to handle pressure applications while ensuring precision and safety.
Standard: SAE J525
Manufacturing Process: Electric Resistance Welded (ERW), Normalized
Wall Thickness: Thick wall, per SAE J525 requirements
Shape: Round tube
Finish: Smooth, suitable for bending and flaring
| Grade | C (%) | Mn (%) | P (%) | S (%) | Fe (%) |
|---|---|---|---|---|---|
| SAE J525 | ≤0.18 | 0.30–0.60 | ≤0.035 | ≤0.035 | Balance |
| ASTM A179 | ≤0.06 | 0.27–0.63 | ≤0.035 | ≤0.035 | Balance |
| ASTM A513 Type 5 (1020) | 0.18–0.23 | 0.30–0.60 | ≤0.040 | ≤0.050 | Balance |
| EN 10305-4 E235 | ≤0.17 | ≤1.20 | ≤0.025 | ≤0.025 | Balance |
| JIS STKM11A | ≤0.15 | 0.30–0.60 | ≤0.030 | ≤0.030 | Balance |
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|
| SAE J525 | 290–430 | ≥180 | ≥35 | ≤72 |
| ASTM A179 | ≥325 | ≥180 | ≥35 | ≤72 |
| ASTM A513 Type 5 (1020) | 350–450 | ≥210 | ≥25 | ≤85 |
| EN 10305-4 E235 | 340–480 | ≥235 | ≥25 | ≤80 |
| JIS STKM11A | ≥290 | ≥180 | ≥30 | ≤72 |
Excellent formability, bendability, and flare capability
Uniform grain structure due to full normalization
High dimensional accuracy and smooth internal surface
Reliable for hydraulic systems under pressure
Enhanced safety in precision instruments applications
SAE J525 (North America)
ASTM A179 / ASTM A513 (USA equivalent options)
EN 10305-4 (European equivalent)
JIS G3445 STKM series (Japanese equivalent)
GB/T 3639 (Chinese equivalent for precision tubes)
SAE J525 tubes are primarily used in hydraulic and pneumatic systems where safety and precision are critical.
Automotive Industry: Brake lines, fuel lines, hydraulic power steering systems
Industrial Machinery: Hydraulic cylinders, fluid power systems, lubrication lines
Precision Instruments: Measuring and control systems requiring high reliability
Construction Equipment: Hydraulic lines for excavators, loaders, and cranes
Aerospace & Marine: Specialized hydraulic control systems
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock,
it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
