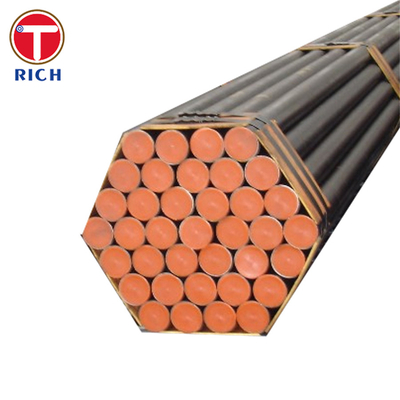

Boiler Tube ASTM A192 Seamless Carbon Steel Tubes For High-Pressure Service Tubes Applications: for Boilers,Superheaters, Heat-Exchangers, High-pressure Boilers, Steam Boilers Cold Condensers and High-Pressure Services, High-Temperature Services for Boiler Constructions Size Range O.D. 12.7 - 177.8 mm W.T. 1 - 25.4 mm Length As per client requested Steel Grade and Chemical Compositions: C 0.06-0.18 Mn 0.27-0.63 P ≤0.035 S ≤0.035 Si ≤0.25 Product Show Company Information FAQ Q

Medium Carbon ASME SA210 Gr.A1 Gr.C Seamless Steel Tubes for Boiler and Superheater Product Deacription Application For boiler tubes, boiler flues and superheater tubes O.D. 12.7 - 127 mm Min W.T. 0.9 - 12.7 mm (Tolerance: +20%) Length As per client requested Chemical Composition Grade C Mn P S Si A-1 ≤0.27 ≤0.93 ≤0.035 ≤0.035 ≥0.10 C ≤0.35 0.29-1.06 ≤0.035 ≤0.035 ≥0.10 Mechanical properties Grade Yield Point Mpa(ksi) Tensile Strength Mpa(ksi) Elongation A-1 ≥255(37) ≥415(60)

ASTM B407 Inconel 800, 800H, 800HT Nickel Iron Chromium Alloy Seamless Steel Tube for Heat Exchangers Material Inconel 800, 800H, and 800HT are nickel-iron-chromium alloys known for their excellent strength and resistance to oxidation and carburization at elevated temperatures. These alloys are commonly used in the production of seamless steel tubes for heat exchangers, where they provide superior performance in high-temperature environments. Specification ASTM B407 is the

JIS G7219 TS360 TS410 TS430 TS500 Seamless Pressure Pipe: Seamless Steel Tubes for Pressure Purposes Material JIS G7219 specifies the requirements for seamless steel tubes used for pressure purposes. These tubes are designed to withstand high pressure and are commonly used in industries such as oil and gas, petrochemicals, and power generation. The seamless construction ensures uniformity and strength, making them ideal for critical applications. Specification The JIS G7219

ASTM A498 Grade 1, 3, 6, 7, 8 Stainless Steel Finned Tube Seamless Steel Tube for Carbon Heat-Exchanger Material Specification ASTM A498 is a specification that covers seamless and welded carbon and alloy steel tubes with integral fins. These tubes are primarily used in heat exchangers, where efficient heat transfer is critical. The specification includes various grades, such as Grade 1, 3, 6, 7, and 8, each offering distinct properties suitable for different applications.

ASTM A213 T2 T5 T9 T11 T92 Alloy Steel Seamless Tube: Ferritic Alloy Seamless Steel Tube for Heat-Exchanger Material ASTM A213 T2, T5, T9, T11, and T92 are grades of ferritic alloy steel seamless tubes specifically designed for high-temperature service, particularly in heat exchangers, boilers, and other pressure vessels. These tubes are known for their excellent resistance to oxidation and corrosion, making them ideal for use in environments where high temperatures and

ASTM A192 SA192 Seamless Carbon Steel Boiler Tubes: Seamless Steel Tube for High-Pressure Service Material Specification ASTM A192/ASME SA192 is a standard specification for seamless carbon steel boiler tubes intended for high-pressure service. These tubes are primarily used in the construction of boilers, superheaters, and heat exchangers, where they are subjected to high temperatures and pressures. Key Features High-Pressure Resistance: Designed to withstand high pressure,

JIS G4053 SCM 440 Low Alloy Steel Pipe Seamless Steel Tube For Machine Structural Use Material JIS G4053 SCM 440 is a low alloy steel known for its excellent mechanical properties and versatility in machine structural applications. This steel is commonly used in the manufacturing of seamless steel tubes and pipes, which are essential components in various industrial sectors. Specification JIS G4053 SCM 440 seamless steel tubes are designed to meet specific requirements for

ASTM A106 GrA GrB GrC High Temperature Tube Seamless Carbon Steel Tube For High-Temperature Service Material Specification ASTM A106 is a specification covering seamless carbon steel pipes for high-temperature service. These pipes are suitable for bending, flanging, and similar forming operations, and for welding. The specification is applicable to pipes with nominal wall thickness as well as those with special wall thickness. Key Features High Temperature Resistance:
