특별한 강관
Q235 / Q345 농업 Machineries를 위한 특별한 삼각형 모양 PTO 관 DIN 2391
Products Description TORICH DIN 2391 Q235 / Q345 Engineering Special Triangle Shape PTO Tube For Algricultural Machineries Standard DIN 2391 Size OD: 15-80mm, WT: 1 - 14 mm, Length: 1-9m or cutting as you require Material 16Mn, 10#, 45#, Q235, Q345, Q195, 20# Hardness HB170-217 Application These pipes are mainly used for agricultural machine PTO shaft Tolerance: we can control it within OD/Thickness +/-0.1mm Quality inspection: 1.Heat pipes inspection:to measure the outer

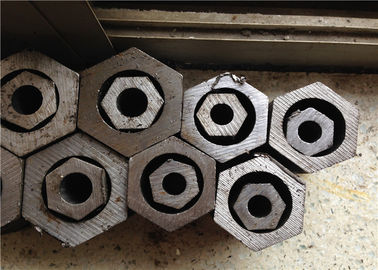

ASTMA1045는 특별 모양 퍼포레이티드 무의미한 6각 스틸 강관 마법 중공 봉을 합금합니다
ASTMA1045 Alloy Special-Shaped Perforated Hollow Hexagonal Steel Tube Hex Hollow Bars Size 6-102mm Material :1010 1020 1045 20Cr 1035 Q195Q235etc. Length:3m or 6m Shape: Outside round Inside Hexagonal MOQ: 3 tons or 5 tons Packaging:In bundles. Application: General and Mechanical structure, construction and liquid conveyance Tolerance: Width ≤30mm:+/-0.20 mm 30-50mm:+/-0.30mm 50-75mm:+/0.7% ＞75mm:+/-0.8% Wall thickness: S ≤1.0mm +/-0.12mm 1-3.0mm +12.5% -10% ＞3.0mm +/-10%
Q235 / Algricultural Machineries를 위한 특별한 강철 삼각형 모양을 설계하는 Q345
DIN 2391 16Mn 10# 20# Seamless Carbon Triangle Tube PTO Tube Product Description Product details Material:16Mn,10#,45#, Q235,Q345,Q195,20# Section Shape:triangular/hexagonal/triangular Place of Origin: Liaocheng, China (Mainland), Phoenix industrial park, Liaocheng city, Shandong province, China Secondary Or Not:Non-secondary Application: rotavator Technique:Cold Drawn Surface Treatment:none Alloy Or Not:Non-alloy Size: 53.6*3.8&44.6*5.5mm and 43.4*3.3/36.1*4.4mm etc OD: 15
ASTM 구조를 위해 형성되는 A500에 의하여 용접되는 이음새가 없는 탄소 강철 특별한 모양 감기
ASTM A500 Cold-Formed Welded and Seamless Carbon Steel Special Shape Tubing for Structure Seamless and Welded Square Steel Tubes Carbon Steel ST37.0,ST44.0, Q235,Q345, SAE1010,SAE1020,SAE1045 Seamless and welded Square steel tubes for application of Structure and scaffolding use Production method: Seamless Cold Drawing ERW Welding Size range: Square tubes O.D. :20-20 to 500-500mm W.T.:1-24mm L:max12000mm Rectangle tubes O.D. :20-30 to 400-600mm W.T.:1-24mm L:max12000mm

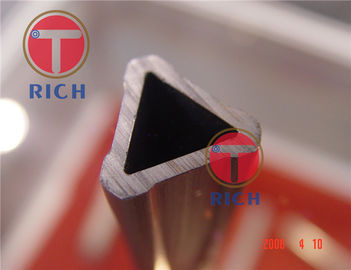

PTO 농업 구동축 1010 1020년을 위한 레몬 관 유형 삼각형 강철 관 특별한 강관
Lemon Pipe Type Triangle Steel Tube Special Steel Pipe for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Special Steel Pipe for PTO Agricultural Drive Shaft 1010 1020 Product information WT: 0.5-50mm OD: 5-420mm Length: 1-12000mm,depends on customer's requirement. Material: SAE1010 , SAE1020 , SAE1035 , SAE1045 , ST37.0 , ST44 , ST52 , E235 , E355 Standard: BS, JIS, GB, DIN, ASTM, API Shape: Lemon Aplication: Lighting,furniture,medical equipment
레몬 모양 이음새가 없는 탄소 강철 관 Pto 갱구 - 농업 구동축을 위해 2
Lemon Shape Seamless Carbon Steel Tube Pto Shaft - 2 For Agricultural Drive Shaft Products Description: for Agricultural Drive Shaft Carbon Steel E235 E355 PTO Shaft-2 Lemon Tube Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025 E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025
1010년 1020 레몬 파이프 형태 트라이앵글 스틸 튜브
Products Description: for PTO Agricultural Drive Shaft 1010 1020 Lemon Pipe Type Triangle Steel Tube Chemical Compositions: Standard Steel Grade C Si Mn P S EN 10305-1 E215 ≤0.10 ≤0.05 ≤0.70 ≤0.025 ≤0.025 E235 ≤0.17 ≤0.35 ≤1.20 ≤0.025 ≤0.025 E355 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 DIN 2391 St35 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St37.4 ≤0.17 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St45 ≤0.21 ≤0.35 ≥0.40 ≤0.025 ≤0.025 St52 ≤0.22 ≤0.55 ≤1.60 ≤0.025 ≤0.025 GB/T 3639 10 0.07-0.13 0.17-0.37 0.35-0.65
직류 전기를 통한 입히는 Astm A106를 가진 정연한/직사각형 정밀도 강관
ASTM A106 Hot Rolled Galvanized Square/Rectangular Steel Pipe/Tube Square / Rectangular Galvanized steel pipe Product Name Square/ Rectangular Steel Pipe Material Carbon Steel Surface Hot dip galvanized Standard DIN GB ISO JIS Grade Q195,Q215,Q235,Q345,Gr.B Thread As customer's requirement Used Construction, Fluid used, building industry, machinery Packing Details : Bundles, With two nylon handle strip for each bundles Delivery Details : Depending on the QTY, normally one
이음새가 없는 용접된 특별한 강관 직사각형 모양 스테인리스 304 316 물자
Products Description: 304 316 Seamless Welded Stainless Rectangular Steel Pipe Square Tube Steel Grade/Steel Material: Mechanical Requirement Grade: TP304 TP304L TP304LN TP316 TP316L TP316LN TP316LN TPXM-29 TP304N UNS S30400 S30403 S30453 S31600 S31603 S31653 S31653 S24000 S30451 C, max 0.08 0.035 0.035 0.080 0.035 0.035 0.035 0.08 0.080 Mn, max 2.00 2.00 2.00 2.00 2.00 2.00 2.00 11.5-14.5 2.00 P, max 0.045 0.045 0.045 0.045 0.045 0.045 0.045 0.060 0.045 S, max 0.030 0.030 0
