무거운 벽 강철 배관

ASTM A106 GR.B S355 Machining Seamless Hot rolled Steel Pipe Construction Structure DIN 2391-1 EN1035-1 st52 unit weight carbon structure 23mm seamless steel pipe tube Standard ASTM DIN GB API Product Keywords 23mm seamless steel pipe tube 1. Material: stainless steel ,carton steel ,steel 2. Size: Customized 3. Standard: No Standard 4. Certification: ISO9001, SGS, CTI, ROHS Product Name CNC Machining Steel Male Thread Tube Female Pipe Material stainless steel Color As

EN10216-1 P195TR1 , P195TR2 , P235TR1 , P235TR2 Seamless Heavy Wall Steel Pipes Standard: EN10216-1 Seamless steel tubes for pressure purposes-Technical delivery conditions Non-alloy steel tubes with specified room temperature properties Applications: for manufacturing pipelines, vessel. Euqipment.pipt fittings and steel structure Size range: O.D.:10.2-711mm W.T.:1-100mm L:max12000mm Chemical composition Steel Grade C Si Mn P S Cr Mo Steel Name Steel Number max max max max

GOST 8734-75 Seamless Thick Wall Steel Tube,10 , 20 , 35 , 45 , 10Mn2 , 15Cr,30CrMnSi,Cold Drawn GOST 8734-75 Seamless Thick Wall Steel Tube Size Range: OD:5-140mm WT:0.4-12mm Length: 3000mm-12000mm Characteristic: Good OD and ID tolerance controlled to Technical Standard Stable quality Tolerances: OD: D 5 – 10 mm: ± 0.15 mm D 11 – 30 mm: ± 0.30 mm D 32 – 50 mm: ± 0.40 mm D 51 – 140 mm: ± 0.8% WT: S 0.4 – 1 mm: ± 0.12 mm S 1.2 – 5 mm: ± 10% S 5.5 – 12 mm: ± 8% Notes: 1. Steel

DIN EN 10210-1 Hot finished Heavy Wall Steel Tubing of non-alloy and fine grain steels DIN EN 10210-1 Hot finished structural hollow sections of non-alloy and fine grain steels Part 1: Technical delivery conditions Part 2: Tolerances, dimensions and sectional properties Cold forming: Process is done at ambient temperature Structrual hollow section manufacturing process: Structural hollow sections are manufactured by seamless or by welding. Welded sections manufactured by

Mild steel tubes are widely used in various industries due to their excellent mechanical properties, durability, and affordability. Three popular mild steel tube grades are AISI 1020, 4130, and 4140. In this article, we will discuss the material, specification, chemical composition, mechanical properties, steel grade, and application of these three grades. AISI 1020 Mild Steel Tube Material AISI 1020 is a low-carbon steel that contains 0.18% carbon and 0.23% manganese. It is

1020 THICK WALL STEEL PIPE HEAVY WALL STEEL TUBING The steel pipe whose ratio of outer diameter to wall thickness is less than 20 is called thick wall steel pipe. It is mainly used as petroleum geological drilling pipe, cracking pipe for petrochemical industry, boiler pipe, bearing pipe, high-precision structural pipe for automobile, tractor and aviation, etc. The difference between thick wall steel pipe and thin wall steel pipe lies in the thickness of steel pipe wall.

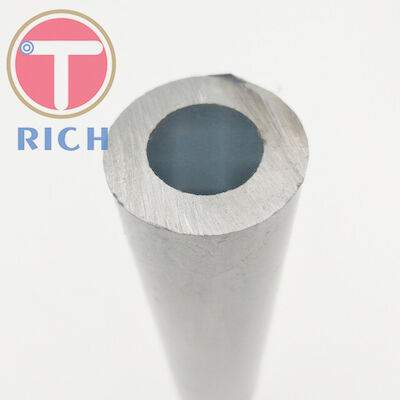

ASTM 1020 SMALL DIAMETER THICK WALL SEAMLESS STEEL PIPE AISI 1020 Carbon Seamless Steel Pipe Tube Chemical Composition(%) Mechanical Property C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength ( σs ) ( σb ) 0.18~0.23 0.15-0.35 0.30~0.60 ≤0.050 ≤0.040 ≤0.25 ≤0.25 ≤0.25 - ≥414 (MPa) ≥483 (MPa) End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements Surface Oiled, Galvanized, Phosphate etc Treatment Technique

TORICH Seamless Carbon Mild 300mm Large Diameter ST37 15Mo3 High Pressure 4 Inch C45 Heavyr-caliber Heavy Thick Wall Steel Pipe Size Range: OD:20-300mm WT: 5-50mm Length: Max 12000mm Characteristic: Good OD and ID tolerance controlled to Technical Standard Stable quality Tolerances: OD: D 5 – 10 mm: ± 0.15 mm D 11 – 30 mm: ± 0.30 mm D 32 – 50 mm: ± 0.40 mm D 51 – 140 mm: ± 0.8% WT: S 0.4 – 1 mm: ± 0.12 mm S 1.2 – 5 mm: ± 10% S 5.5 – 12 mm: ± 8% Notes: 1. Steel grades: 10, 20,

EN10216-1 100mm Wall Thickness Heavy Wall Steel Tubing Round Steel Pipe Standard: EN10216-1 Seamless steel tubes for pressure purposes-Technical delivery conditions Non-alloy steel tubes with specified room temperature properties Applications: for manufacturing pipelines, vessel. Euqipment.pipt fittings and steel structure Size range: O.D.:10.2-711mm W.T.:1-100mm L:max12000mm Chemical composition Steel Grade C Si Mn P S Cr Mo Steel Name Steel Number max max max max max max
