EN10305-1 Precision E355 Seamless Steel Tube E235 Carbon Steel Pipe Honed Tube 1.Quick Details: Name EN10305-1 Precision E355 Seamless Steel Tube E235 Carbon Steel Pipe Honed Tube Type Carbon Production Cold drawn and seamless Application Hydraulic system, automotive industry, etc OD 5-420mm WT 0.5-25mm Length 5.8m for 20GP, 11.8 for 40HQ Production 35-45 days Surafce Oiled to prevent rust Heat Treatment according to requirement Package Packing in seaworthy package, wovan

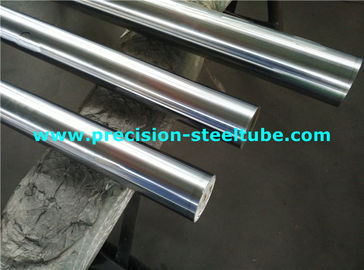

40Cr Hard Chrome Rod CK45 Hydraulic Cylinders for ST52 Honing Machine Cylinder 1. Quick details: SUPPLY CONDITION Ground and chrome plated CHROME THICKNESS 20 to 30 micron SURFACE ROUGHNESS Ra≤0.2 micron and Rt≤2 micro TOLERANCE ON DIA ISO f7 on the diameter OVALITY Half of the tolerance ISO f7 STRAGHNESS ≤0.2MM/M SURFACE HARDNEDD 850-1150 HV(vickers 100g) COHESION No craks,breaking or detaching after thermic shock(warming up at 3200 celsius degrees and cooling in water)

Chromoly 4130 Steel Tube Chromoly Steel : A refractory alloy consisting of chromium-based alloys with other elements. Compared with nickel, chromium has higher melting point (1860℃), higher specific strength (ratio of strength to density), better oxidation resistance and corrosion resistance of high sulfur, diesel fuel and sea water. Chromoly Steel process Chromium alloy billet can be made by smelting or powder metallurgy. Because of its high vapor pressure, chromium needs

Hydraulic Tube DIN2391 ST52 H8 BKS Honed Steel Pipe Origin China Brand TORICH OD 30-250mm WT 2-30mm Grade 16Mn 25Mn 27SiMn E355 ST52 ST45 Surface Treatment Hot Rolled Standard GB/T ASTM Delivery Time 15-30Day Technology Hot Rolled Cold Rolled Application of hone tube: Engineering machinery, metallurgical machinery, plastic machinery, hoisting machinery, mining machinery, road construction machinery, textile machinery and other industries. FAQ 1. who are we? We are based in

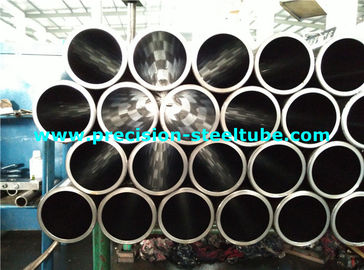

EN10305 ST52 CDS SRB Semi-Finished (Unhoned) Honed Hydraulic Cylinder Line Tubing And Tubes Quick detail : Origin China Brand name Torich Certificate ISO9001 TS16949 Material St37.4 St52 ,E355,S45C,1020, Product name EN10305 ST52 CDS SRB Semi-Finished (Unhoned) Burnished Honed Hydraulic Cylinder Line Tubing And Tubes Capacity Burnished Honed Cutting Chamfering Basic introduction Production method:Seamless Cold drawning,Burnished,Honed Material of Hydraulic Cylinder Line

ST52 Hard Chrome Plated Piston Rod for Hydraulic Cylinder Main Process: 1. Hydraulic Steel Raw Material Cutting 2. CNC Machining + additional broaching and milling operations 3. Induction Hardening 4. Chrome Plating 5. Dehydrogenation and Tempering 6. Polish and Superfinish Polish 7. 100% Inspection 8. Craft Boxes and Wooden Case Packaging Detailed Specification: Materials: GCr15 SUS440C Hardness:HRC62 ±2(SUS440C:HRC58) Accuracy:g6 h6 Roughness: Rmax 0.8 Hard Belt: 0.8-3mm

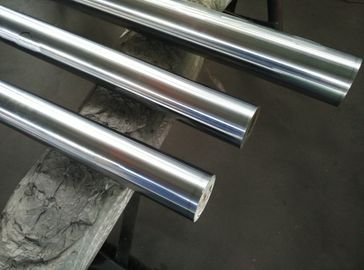

ST52 Chrome Plated Hollow Piston Rod Product Name ST52 Chrome Plated Hollow Piston Rod Material CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc. Delivery Condition Hard Chrome Piston Rod ( HRC 15-20) Quenched & Tempered (Q+T) Rod (HRC 28-32) Induction Hardened Rod (HRC 55-62) Q+T Induction Hardened Rod (HRC 60-65) Straightness:

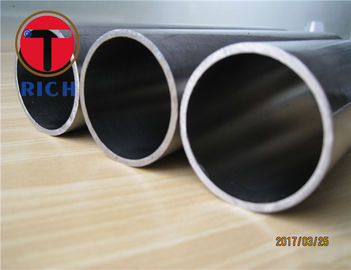

316 Stainless Steel Quilted Grinding Pipe Hydraulic Cylinder Tube Stainless steel quilted pipe can be directly used for hydraulic cylinder liner, cylinder block, cylinder pull rod and other hydraulic cylinder products without processing. High quilting accuracy, inner hole precision H7-H10, inner hole roughness less than 0.63nm, standard straightness less than 0.3mm/m. High precision stainless steel quilted pipe is used in hydraulic, cylinder, pipeline, textile, printing,

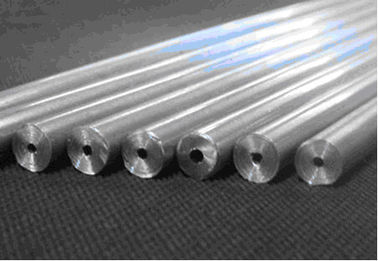

Bearing Steel Hollow Optical Shaft Hard Shaft Cylindrical Guide Chrome-Plated Rod Linear Slide Rod Sliding Material: Gcr15 Hardness: Gcr15: HRC60±2 Accuracy: g6 ★The diameter tolerance of the bearing steel hollow shaft is 0~-0.03 mm, the inner hole is not polished, and the inner hole tolerance is plus or minus 0.5 mm. ◆The length of the hollow shaft can be cut on demand, and the price is calculated according to the required length.
